S22-S22-R

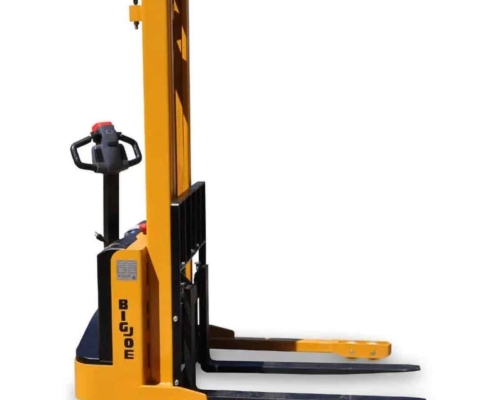

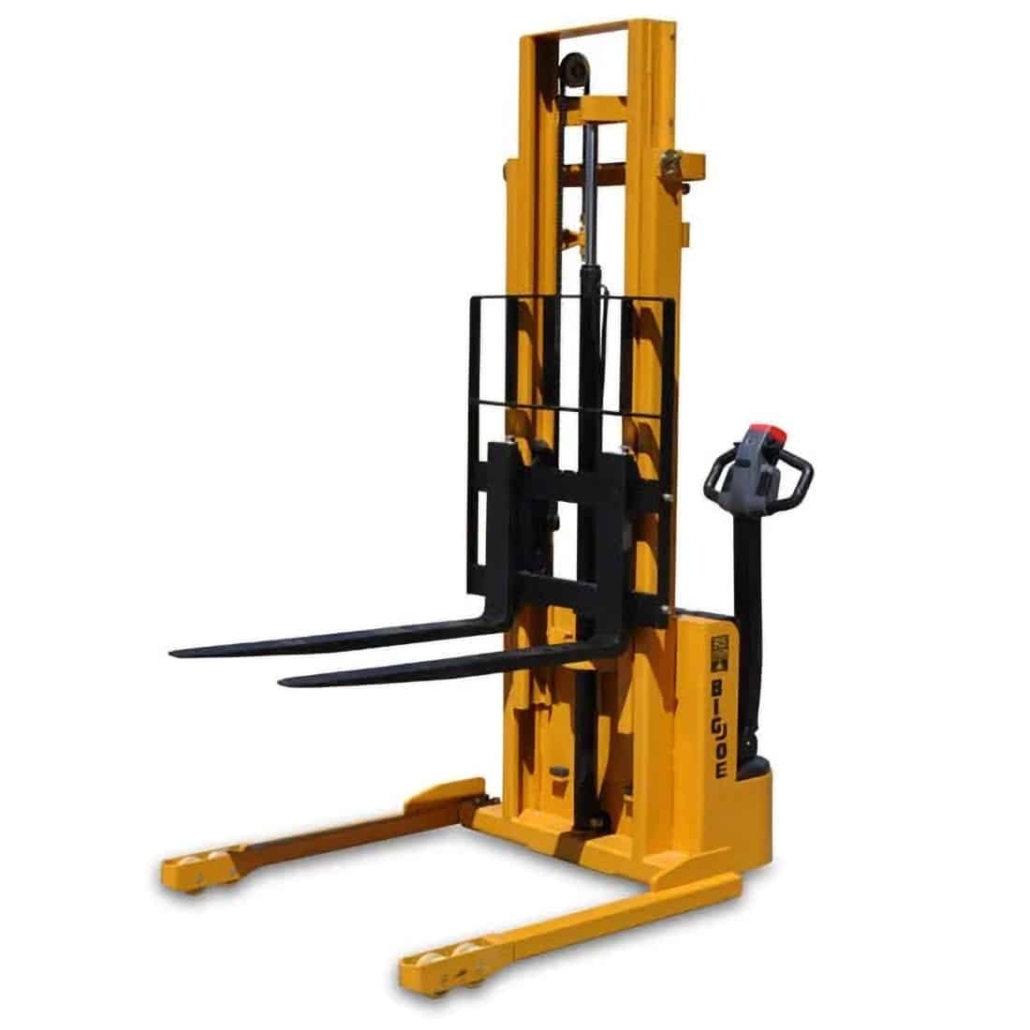

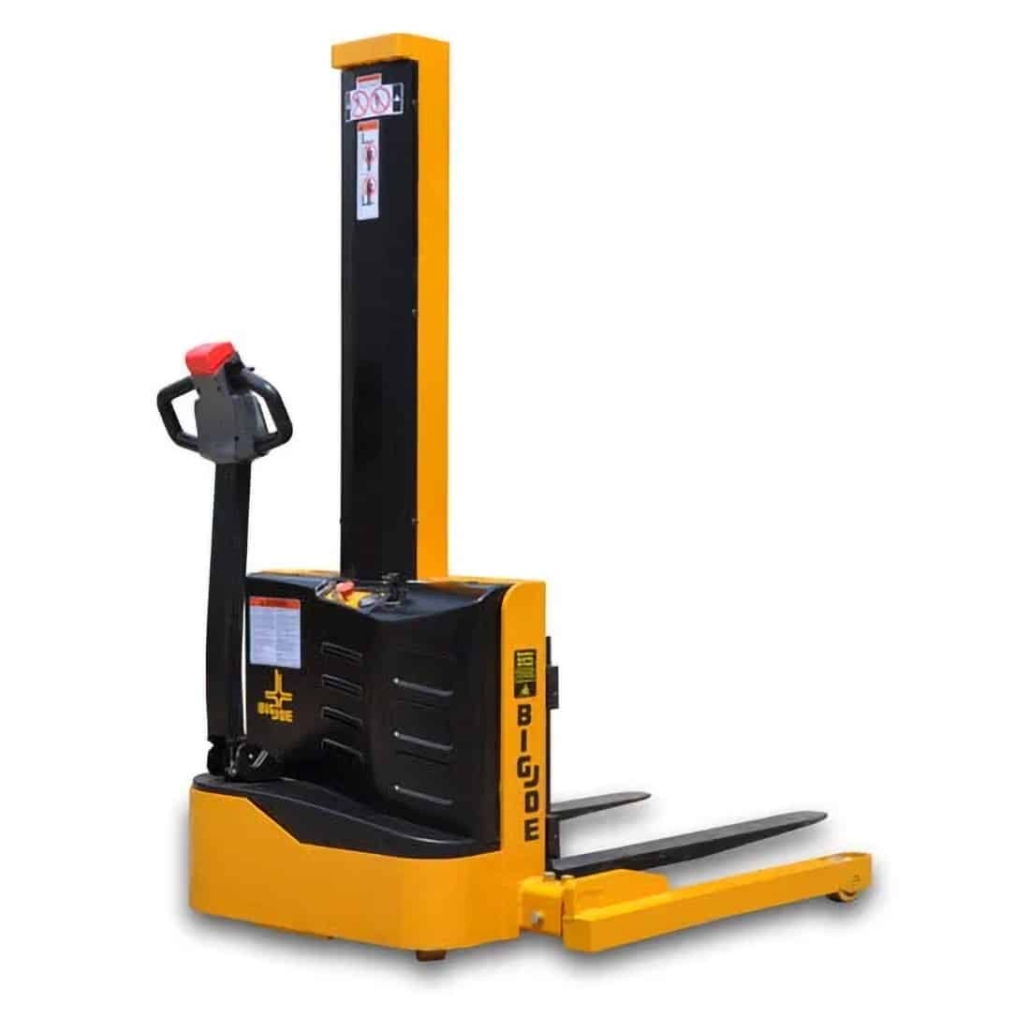

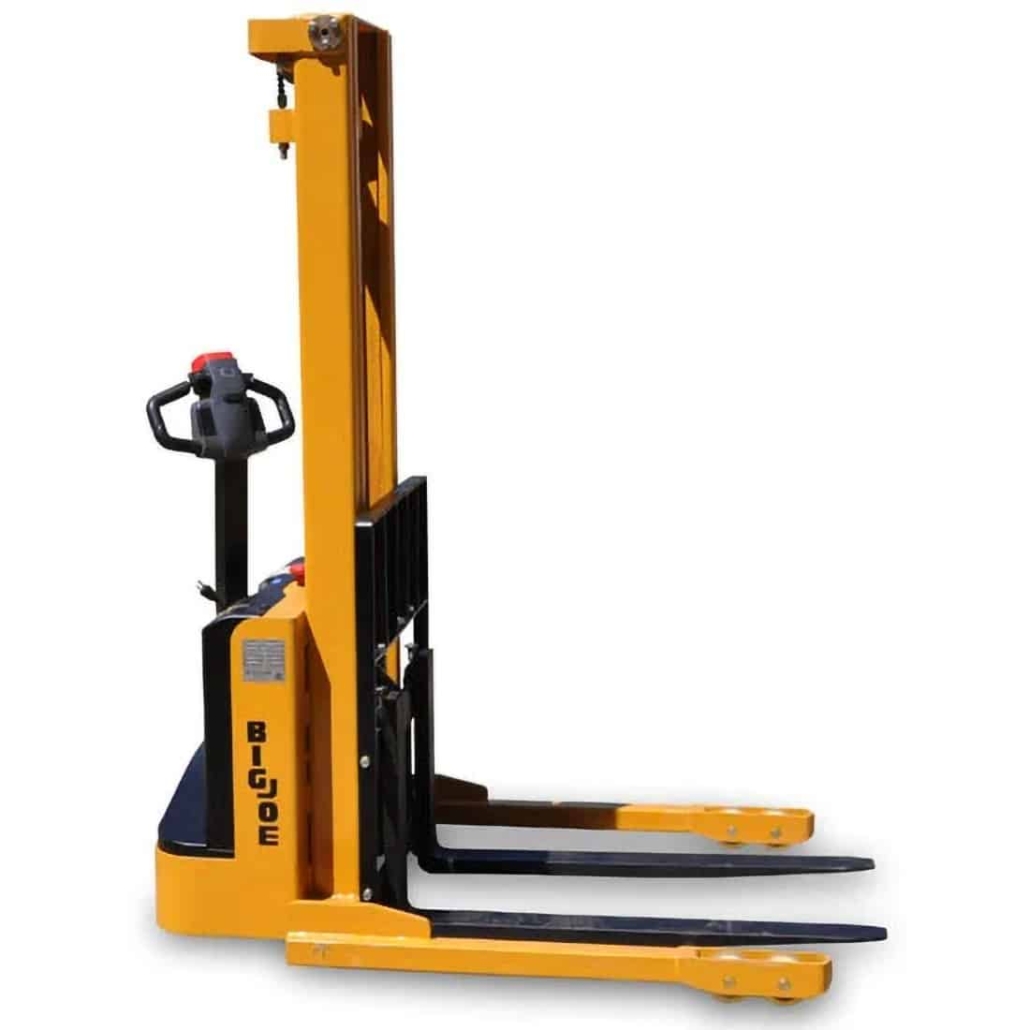

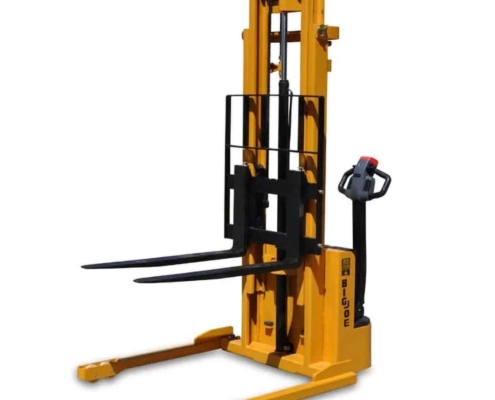

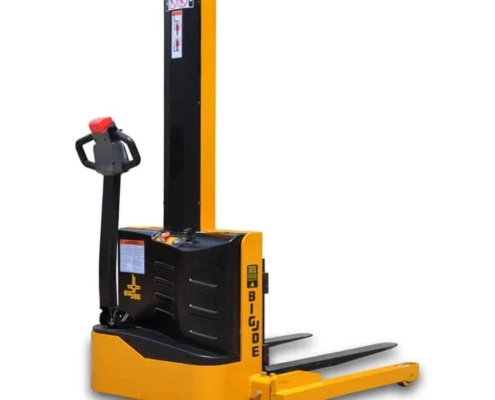

2,200 lb. Walkie Straddle Stacker

S22 2,200lb. capacity standard model with maximum lift heights from 62″”-116″

S22-62R forkover model also available for use with skids, general work positioning and transportation.

Vehicle TypeWalkie Straddle Stackers
Capacity2,200lbs. @ 24” load center
Power24 volt – S22 DC / S30 AC
Max Lift HeightsS22 62”, 96”, 116″
Fork Dimensions42” x 4” x 1.5” / S22-62R 45” x 22”
Vehicle DimensionsSee specification sheet
Turning RadiusSee specification sheet
Travel Speed2.5 mph
Battery CompartmentSee specification sheet
Battery CapacityS22 60AH to 85AH
ChargerIntegral to pack, 110v plug-in

Product Highlights

  • 24 volt system
  • High efficiency drive motors
  • Adjustable straddles. S22-62R Fork over configuration available
  • Infinitely variable speed operation for tight turning in close quarters
  • Ergonomic handle with safety reversing switch and horn
  • Maintenance free integral batteries and 110volt charger
  • Battery discharge indicator, Emergency power disconnect
  • Key switch to limit access to approved personnel
