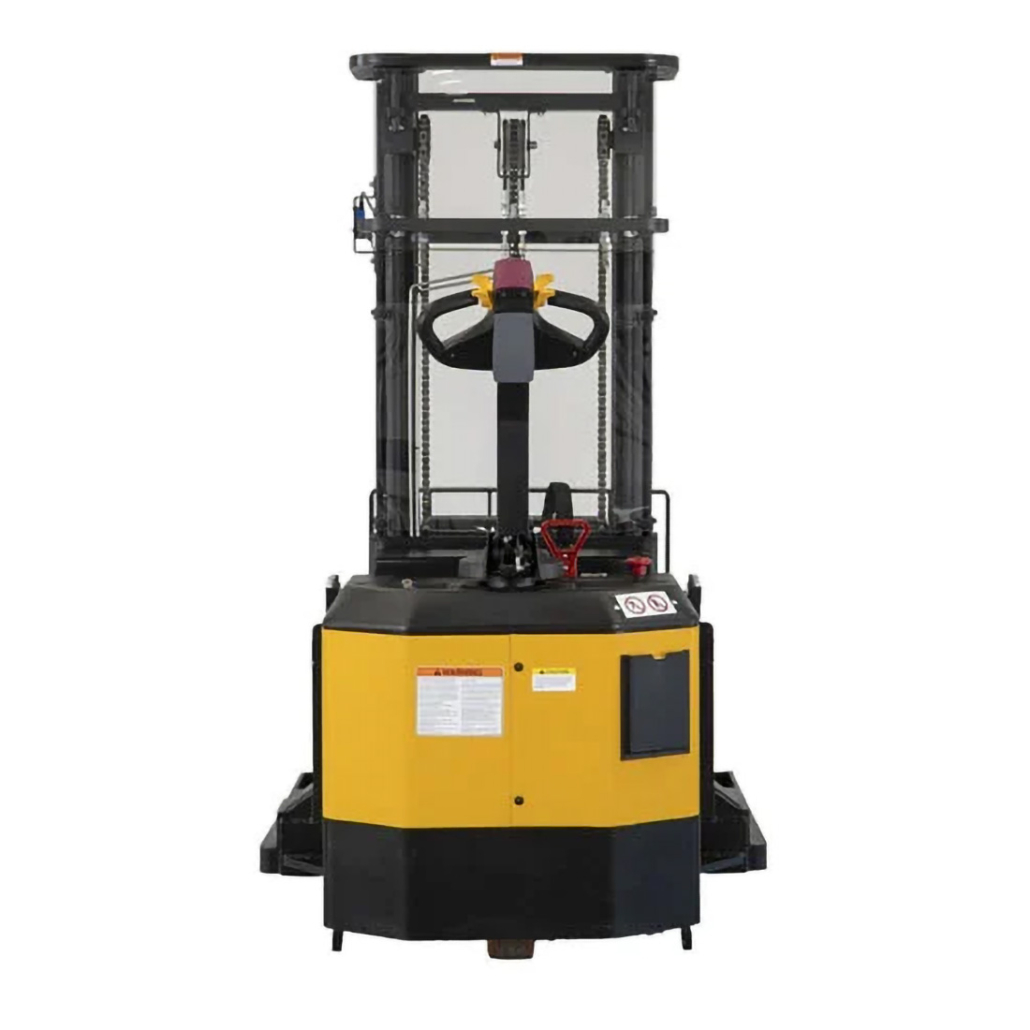

PDSR

3,000 lb. Walkie Reach Truck

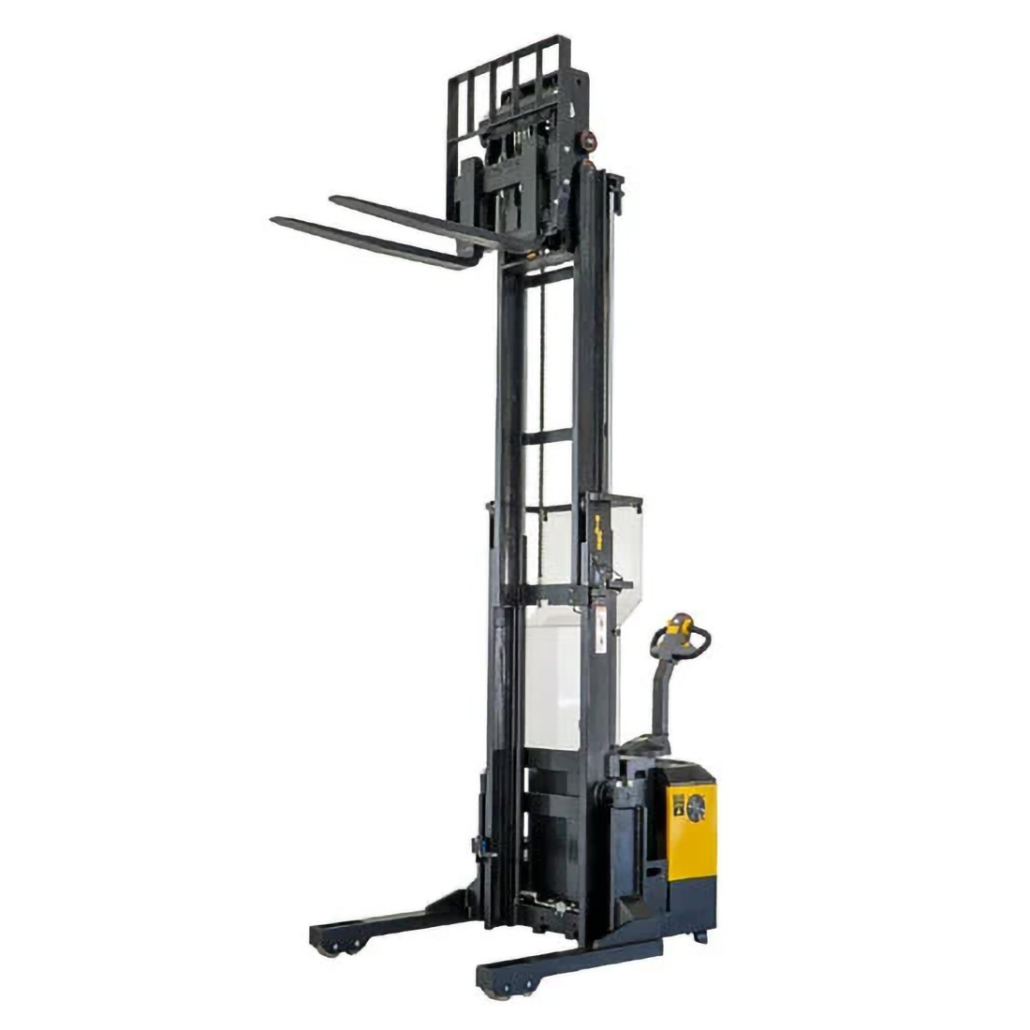

3,000lb capacity models with lift heights to 189″

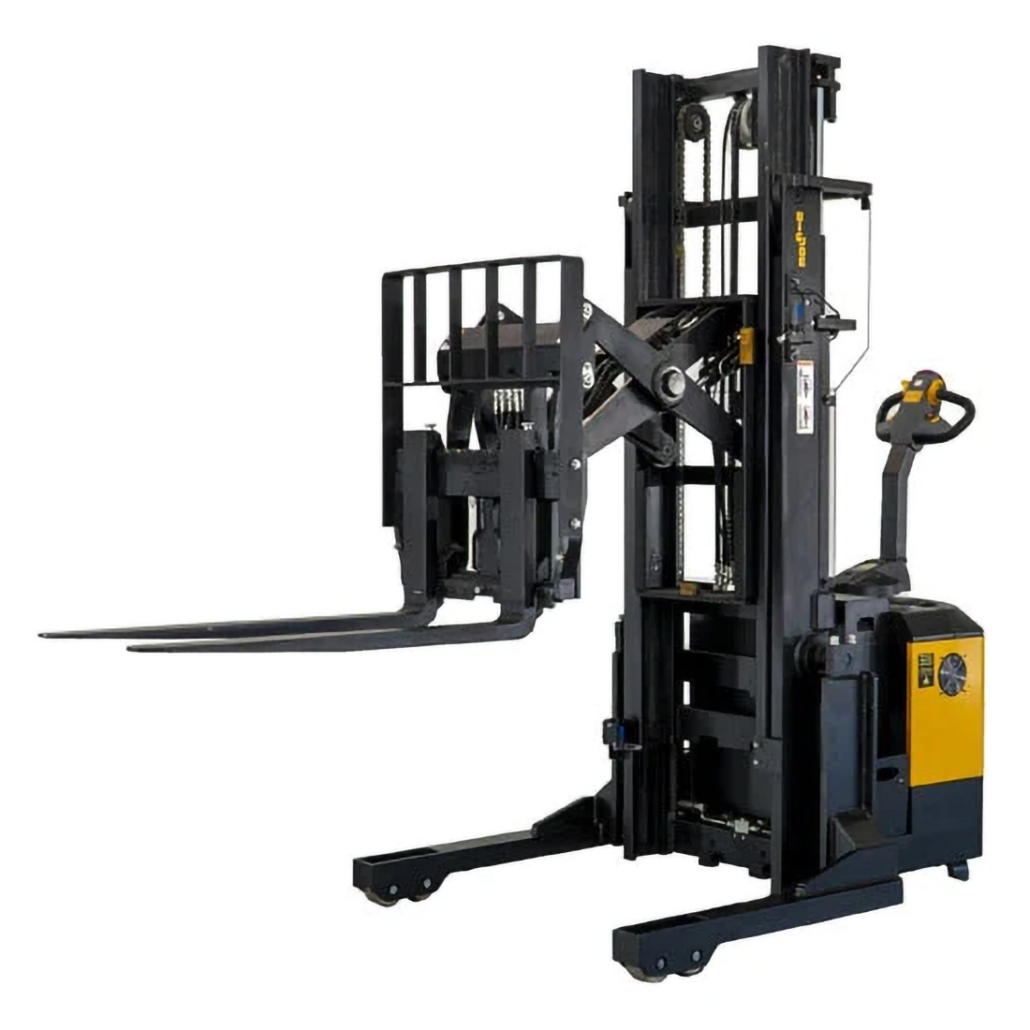

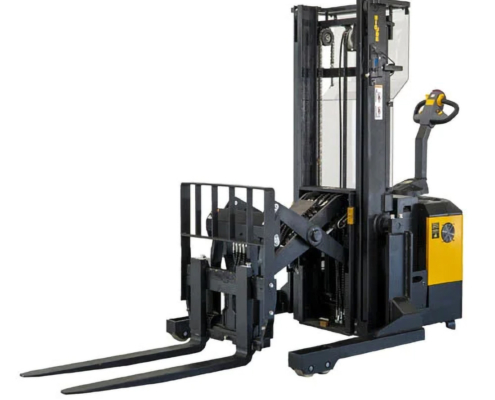

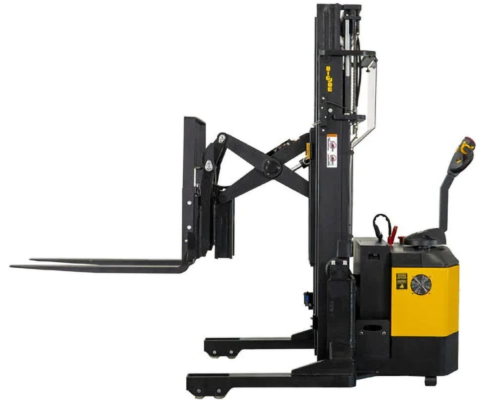

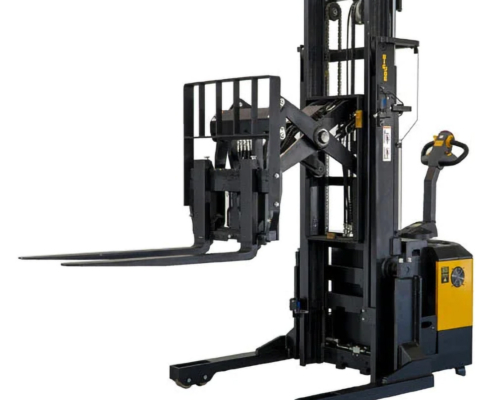

The PDSR combines the tight turning characteristics and low operating cost of a walkie straddle stacker with the flexibility of a counterbalanced truck through the use of a pantograph. This mechanism extends the loads being handled beyond the straddle legs to lift or lower products and can be retracted for compact turns. With the addition of power steering, sideshift, proportional hydraulics, and tilt, the PDSR delivers exceptional versatility and easy intuitive control.

Vehicle TypeWalkie Straddle Stackers
Capacity3,000lbs./4,000lbs. @ 24” load center
Power24 volt AC electric with ZAPI transistor control-inverter
Max Lift HeightMasts available up to 177”
Collapsed HeightMasts available as low as 71”
Fork Dimensions42” L x 4” W x 1.5” Thick
Vehicle DimensionsSee specification sheet
Turning RadiusSee specification sheet
Travel SpeedProgrammable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
Battery Compartment26.37” x 9.06” x OPEN
Battery Capacity224AH Maintenance free battery pack
ChargerIntegral to pack, 110v plug-in

Product Highlights

  • 24volt ZAPI transistor control with high torque AC drive motor
  • Pantograph extends forks beyond straddle legs
  • Power steering, sideshift, tilt and proportional lift, lower, extend & retract
  • Choice of 34″/42″ or 42″/50″ fixed straddle legs
  • Ergonomic control handle with safety reversing switch and horn
  • Industrial battery or 224 AH Maintenance free battery pack
  • Battery discharge indicator with hour meter
  • Key switch to limit access to approved personnel
