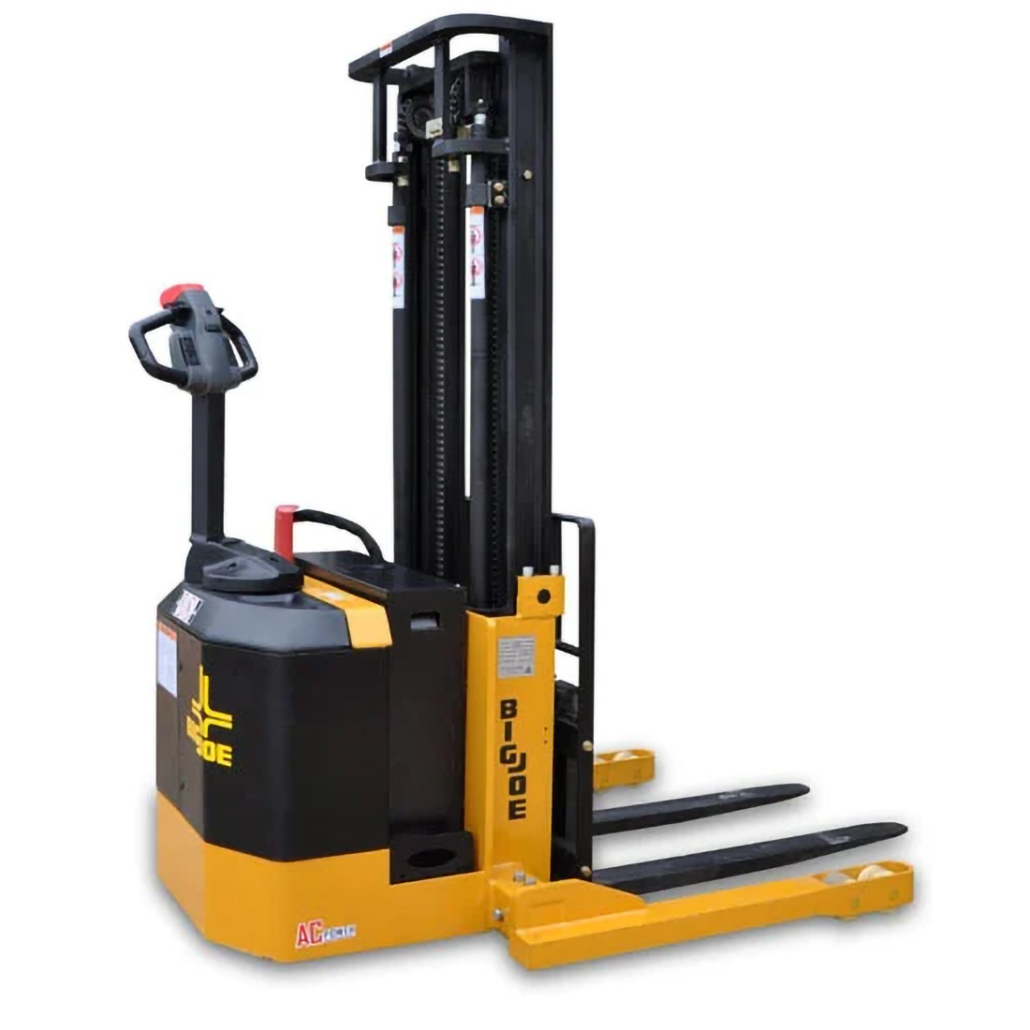

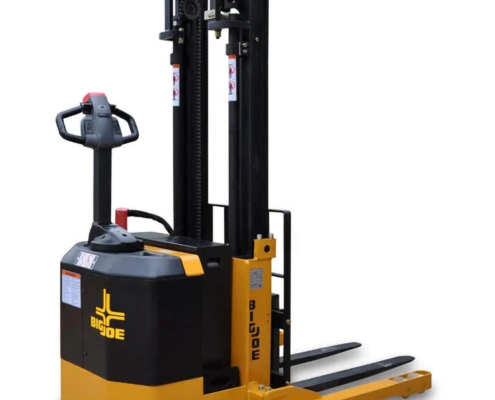

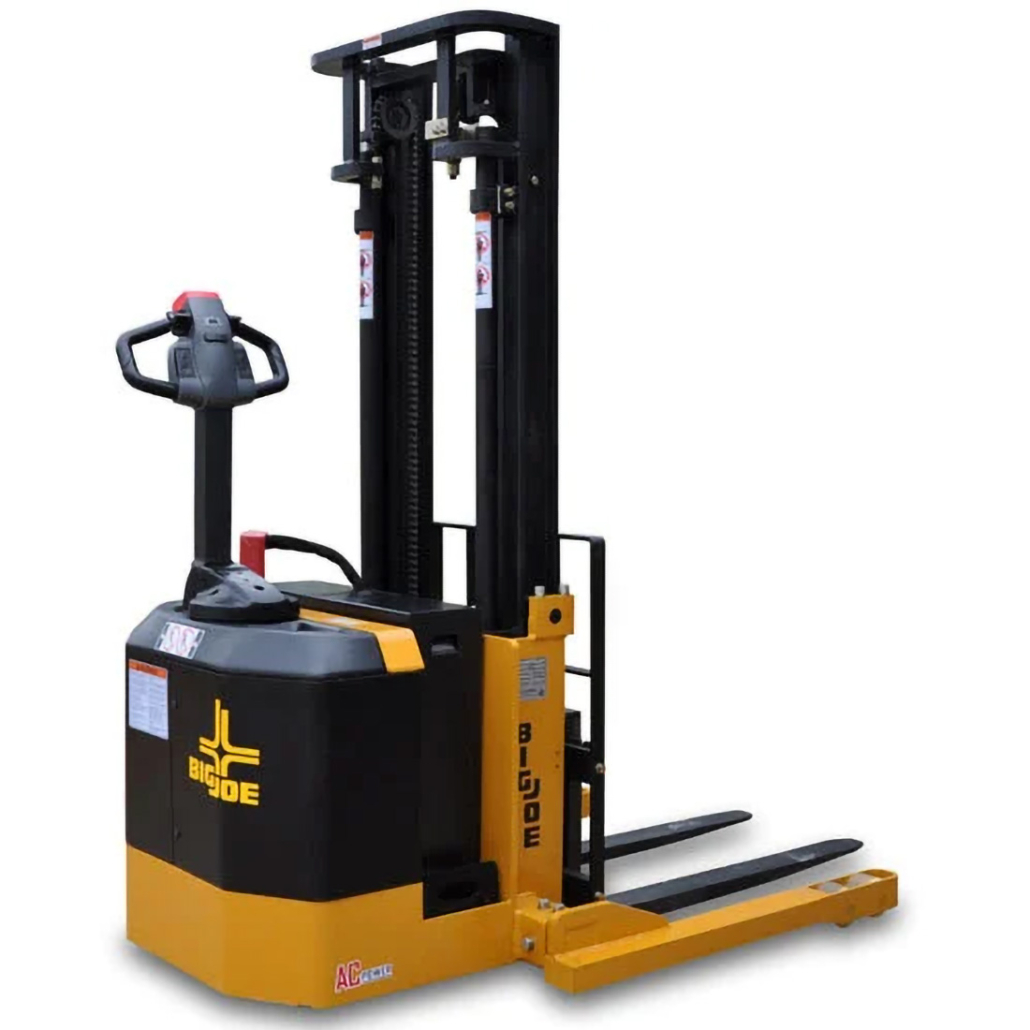

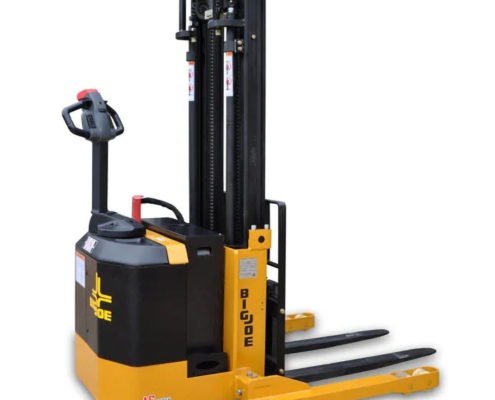

PDS30-40

3,000lb and 4,000lb capacity models with lift heights to 177″

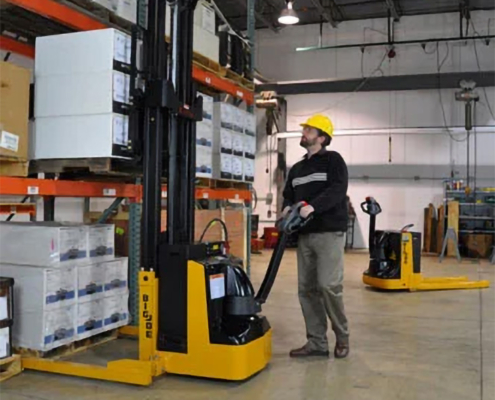

An easy to use and maintain truck that is a good choice for warehouse operations and other environments where space is limited.

Vehicle TypeWalkie Straddle Stackers
Capacity3,000lbs./4,000lbs. @ 24” load center
Power24 volt AC electric with ZAPI transistor control-inverter
Max Lift HeightMasts available up to 177”
Collapsed HeightMasts available as low as 71”
Fork Dimensions42” L x 4” W x 1.5” Thick
Vehicle DimensionsSee specification sheet
Turning RadiusSee specification sheet
Travel SpeedProgrammable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
Battery Compartment26.37” x 9.06” x OPEN
Battery Capacity224AH Maintenance free battery pack
ChargerIntegral to pack, 110v plug-in

Product Highlights

  • 24volt ZAPI transistor control
  • High torque AC drive motor
  • Double reduction helical ZF GK10 transmission
  • Shaft mounted electromechanical brake
  • Creep speed operation for tight turning in close quarters
  • Ergonomic handle with safety reversing switch and horn
  • 224 AH Maintenance free battery pack
  • Battery discharge indicator with hour meter
  • Key switch to limit access to approved personnel
