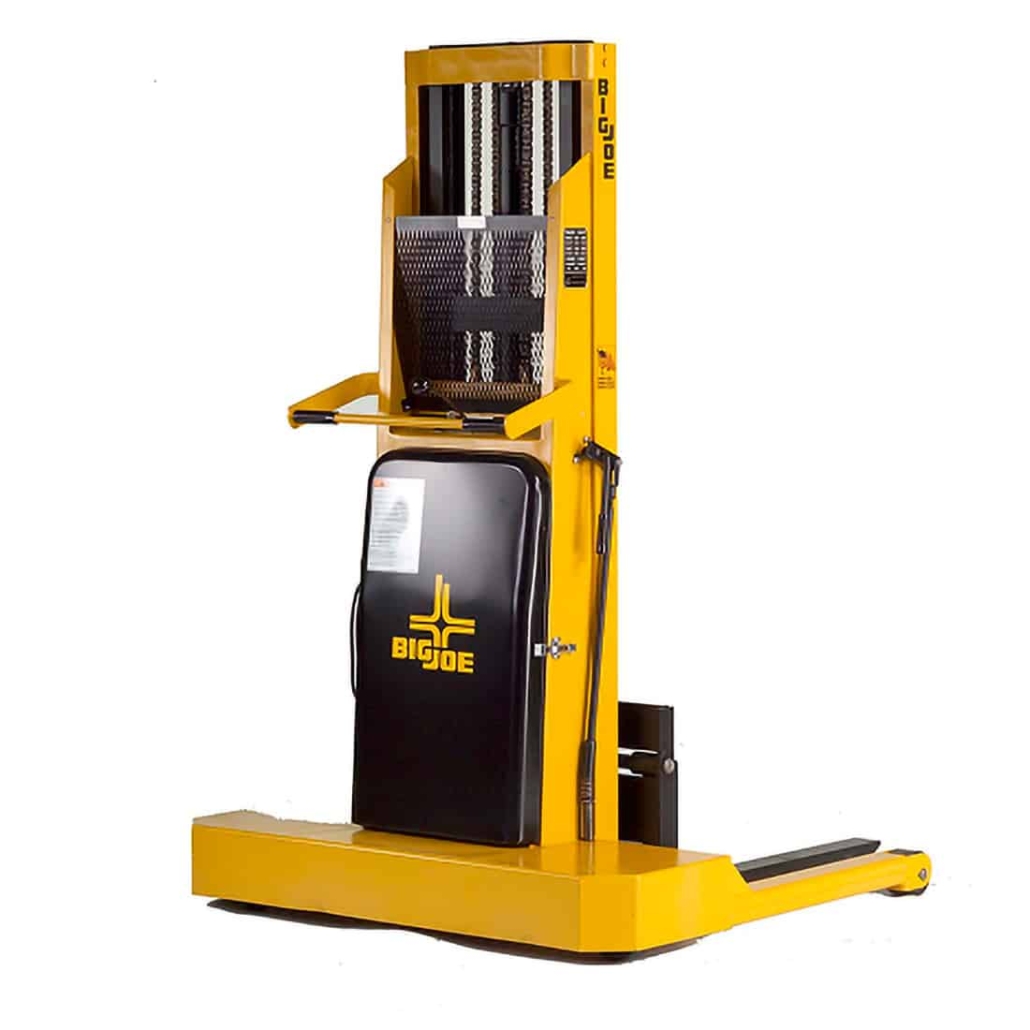

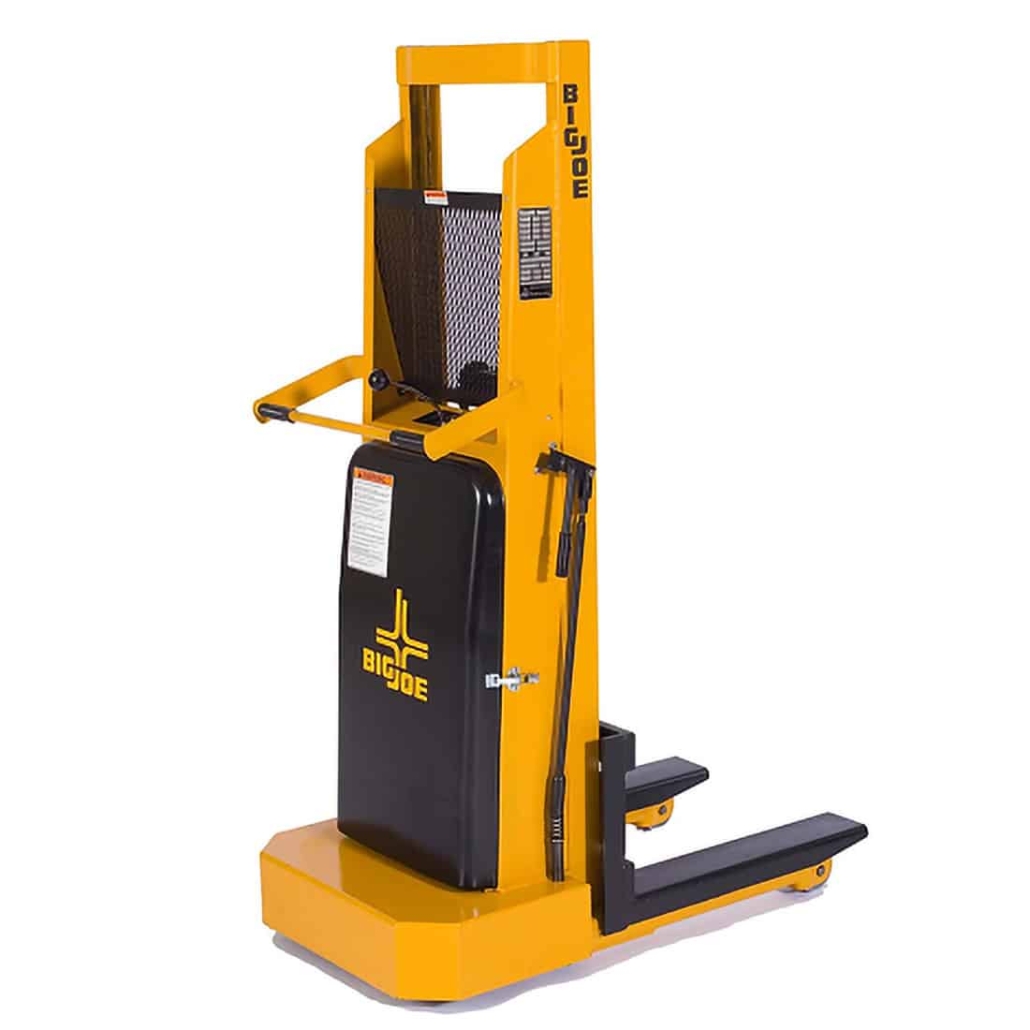

IBH

1,000-2,000 lb. In-Between Handling Lift Truck

The original in-between handling vehicle, our IBH manual straddle stacker continues to be one of our most popular models. The simple design and functionality of the IBH make it a great choice for work positioning, transport and storage duties where powered lift is all you need.

Vehicle TypeManual straddle stacker
Capacity1,000lbs. to 2,000lbs. @ 18” or 24” load center
Power12 volt electric with battery pack and charger
Max Lift HeightMasts available from 57” to 144”
Collapsed HeightBased on configuration and max lift height
Fork DimensionsA wide variety of options available
Vehicle DimensionsVaries see media tab to download product sheet
Turning RadiusAs little as 46” up to 54.25” depending on model
Battery Capacity105AH / 125 AH/ 155AH available
ChargerInternal included

Product Highlights

  • 1,000 to 2,000lb. Capacity depending on vehicle configuration
  • 12volt electrical power with built-in battery pack and charger
  • Premium steel frame construction protects components and reduces maintenance
  • Premium steel mast construction provides extended service life and load stability
  • Compact vehicle design provides exceptional maneuverability in tight areas
  • Shaft type forks provide for easy adjustment
  • Chrome plated lift cylinder with pressure compensation lowering valves
  • A wide variety of vehicle options to meet your specific application needs
  • Optional add on attachments designed for a variety of special industry applications
