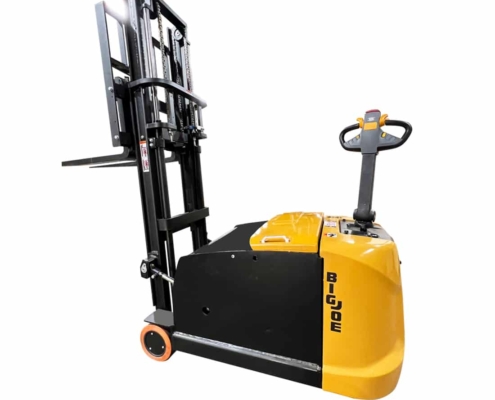

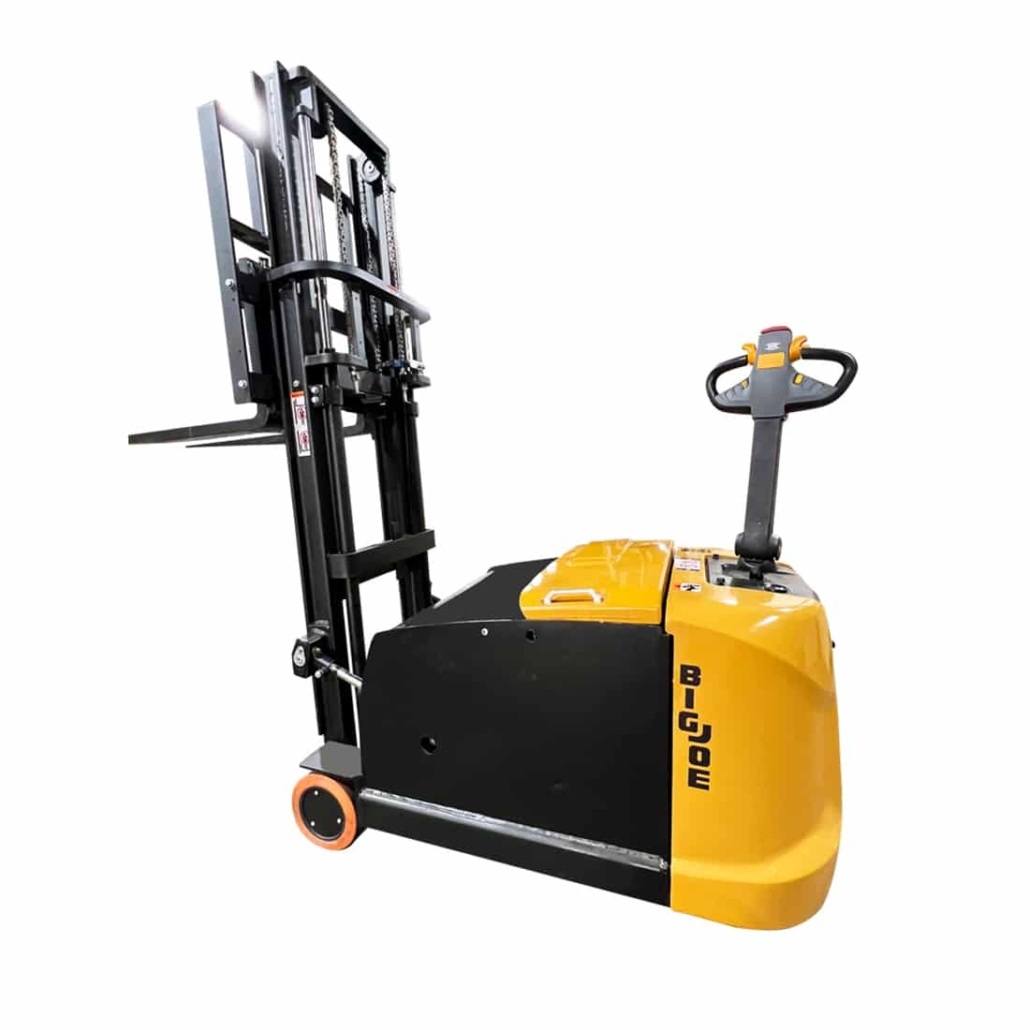

CB30/35
3,000 or 3,500 lb. Counterbalanced Walkie Stacker
The new Big Joe CB30 and CB35 counterbalanced walkie stackers are compact alternatives to sit-down forklifts, operate at a lower cost and travel at walking speeds. Big Joe pioneered these type of lift trucks more than 50 years ago and these next generation 3,000lb capacity and 3,500lb capacity designs have been crafted with the knowledge we have gained along the way.
| Vehicle Type | Counterbalanced Stackers |
| Capacity | 3,000lbs. & 3,500lbs. @ 24” load center |
| Power | 24 volt AC electric with Zapi controller |
| Max Lift Height | Masts available up to 157” |
| Collapsed Height | Masts available as low as 72.4” |
| Fork Dimensions | 42” L x 4” W x 1.5” Thick |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | See specification sheet |
| Battery Compartment | See specification sheet |
| Battery Capacity | 224AH AGM pack or Industrial |
| Charger | Integral to pack or external available |
Product Highlights
- 24 volt Zapi AC Controllers
- High torque AC drive motor
- Lift, lower and tilt buttons in handle
- Forward and back tilt for accurate positioning of loads
- High visibility I-beam mast with lift heights to 157″
- Power steering
- Premium AGM battery pack, industrial or lithium battery options
- Battery discharge indicator with hour meter
- ITA Class II fork carriage
