P33

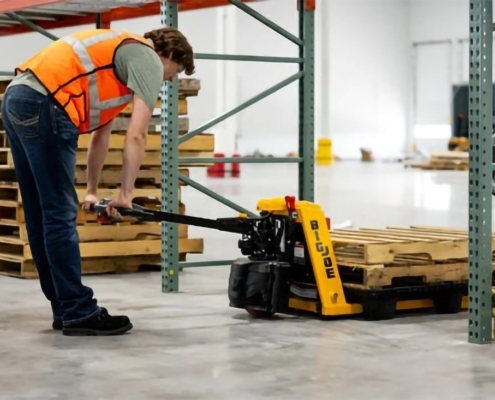

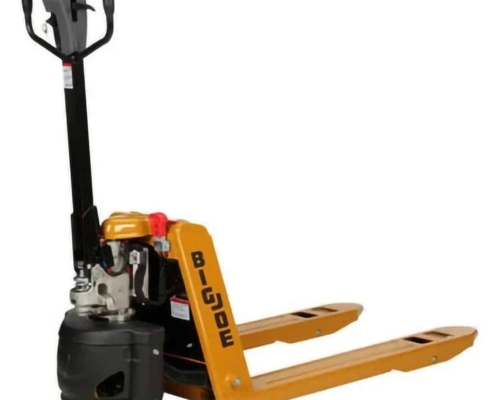

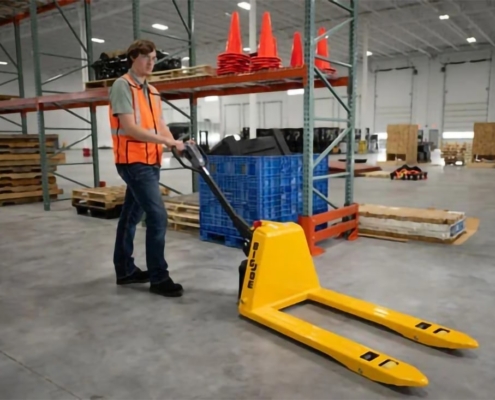

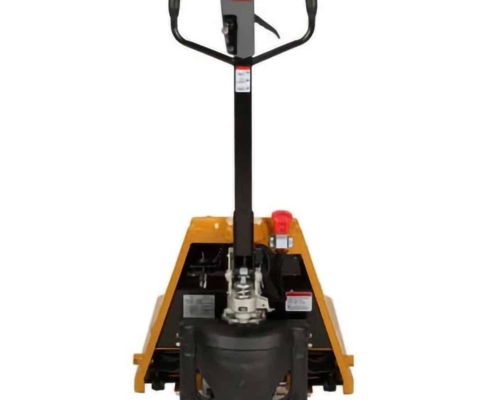

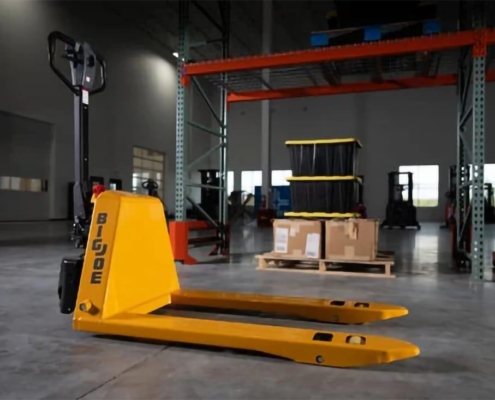

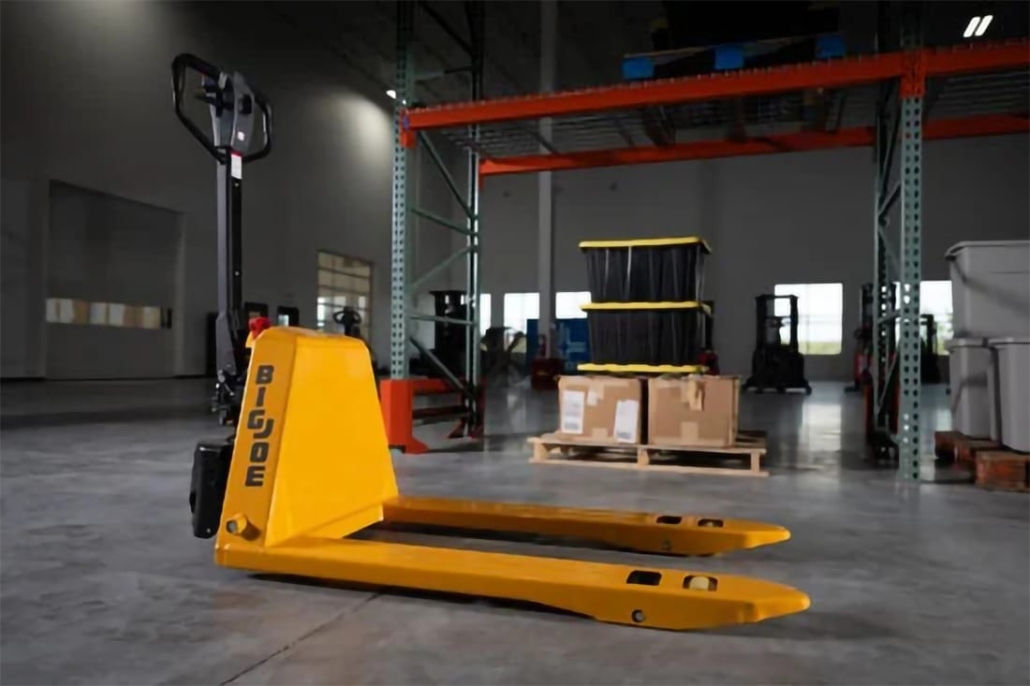

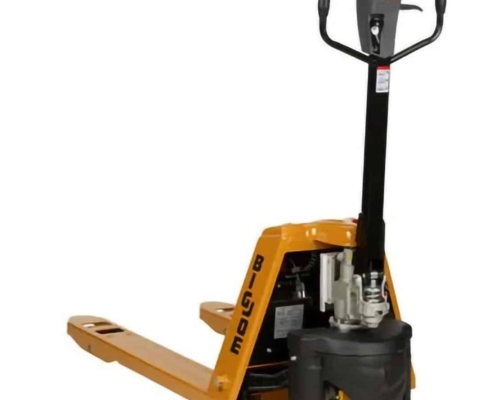

3,300 lb. Capacity Semi-Electric Pallet Jack
Our 3,300lb capacity semi-electric pallet truck can help to reduce operator strain caused by pulling or pushing loads on a manual hand pallet jack. Single speed powered travel is provided for both forward and reverse, while lifting and lowering is accomplished with a standard manual pump.
Vehicle Type | Motorized pallet truck with manual lift pumps |
Capacity | 3,300lbs. @ 24” load center |
Power | 24 volt electric with DC controller |
Max Lift Height | 7.5” |
Collapsed Height | 3” |
Fork Dimensions | 27” W x 45” L standard |
Vehicle Dimensions | 62” OAL, 27” OAW |
Turning Radius | 56” |
Travel Speed | 2.5mph empty, 2.0mph loaded |
Battery Compartment | Polycase maintenance free |
Battery Capacity | 30AH |
Charger | Internal 110VAC plug-in |
Product Highlights
- 24 volt DC drive motor and controller
- Electromagnetic disk brake
- Ergonomic handle with safety reversing switch and horn
- 30AH polycase batteries with internal 110VAC charger
- Battery discharge indicator
- US patent 754,415
