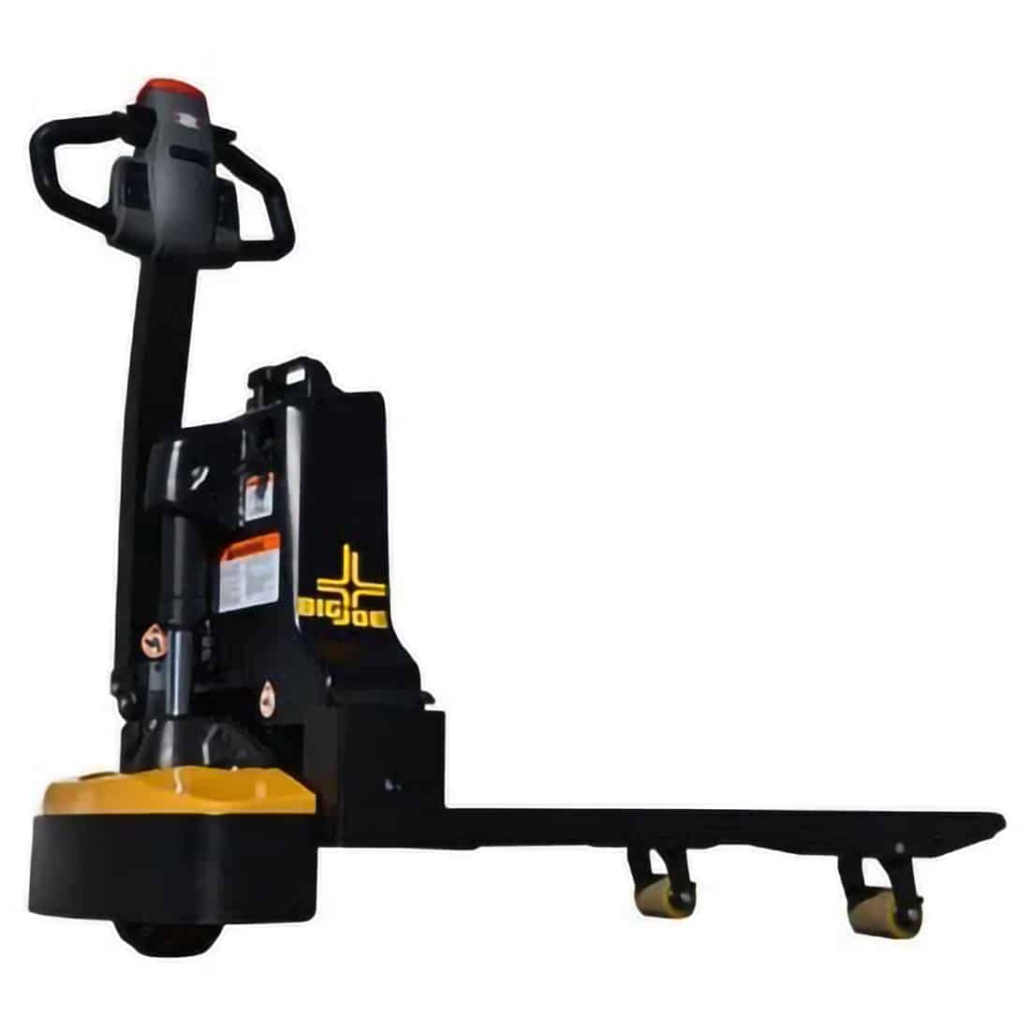

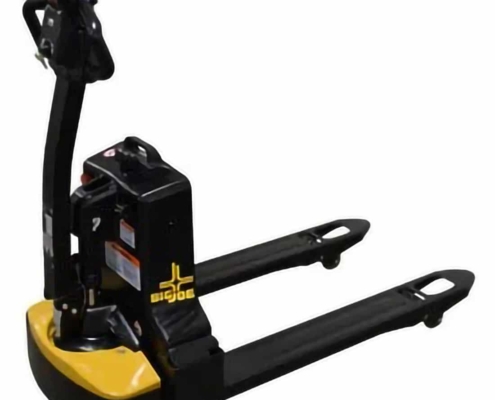

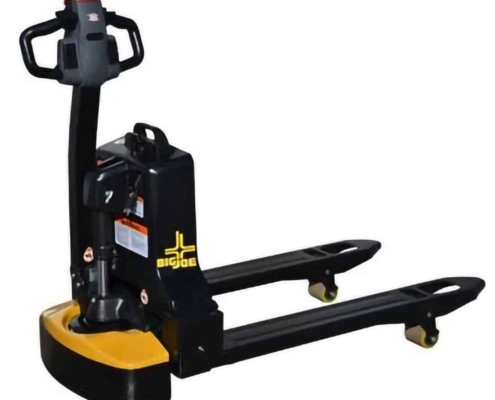

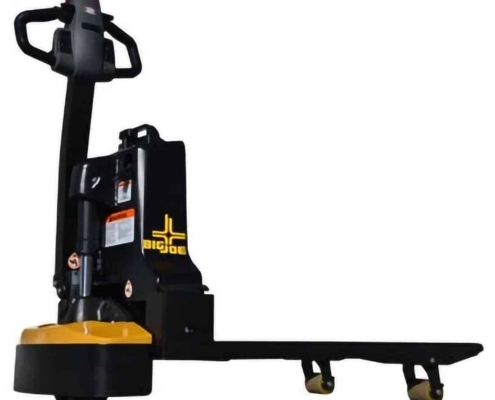

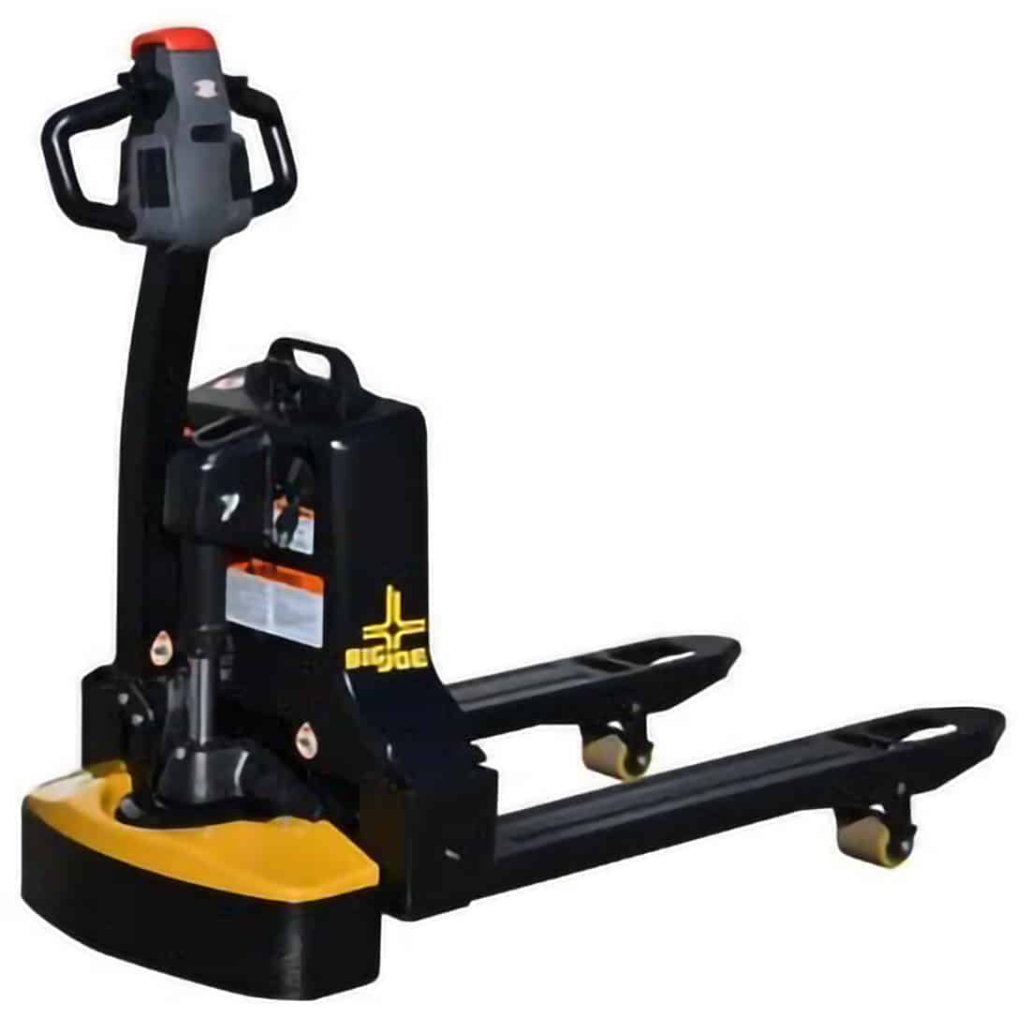

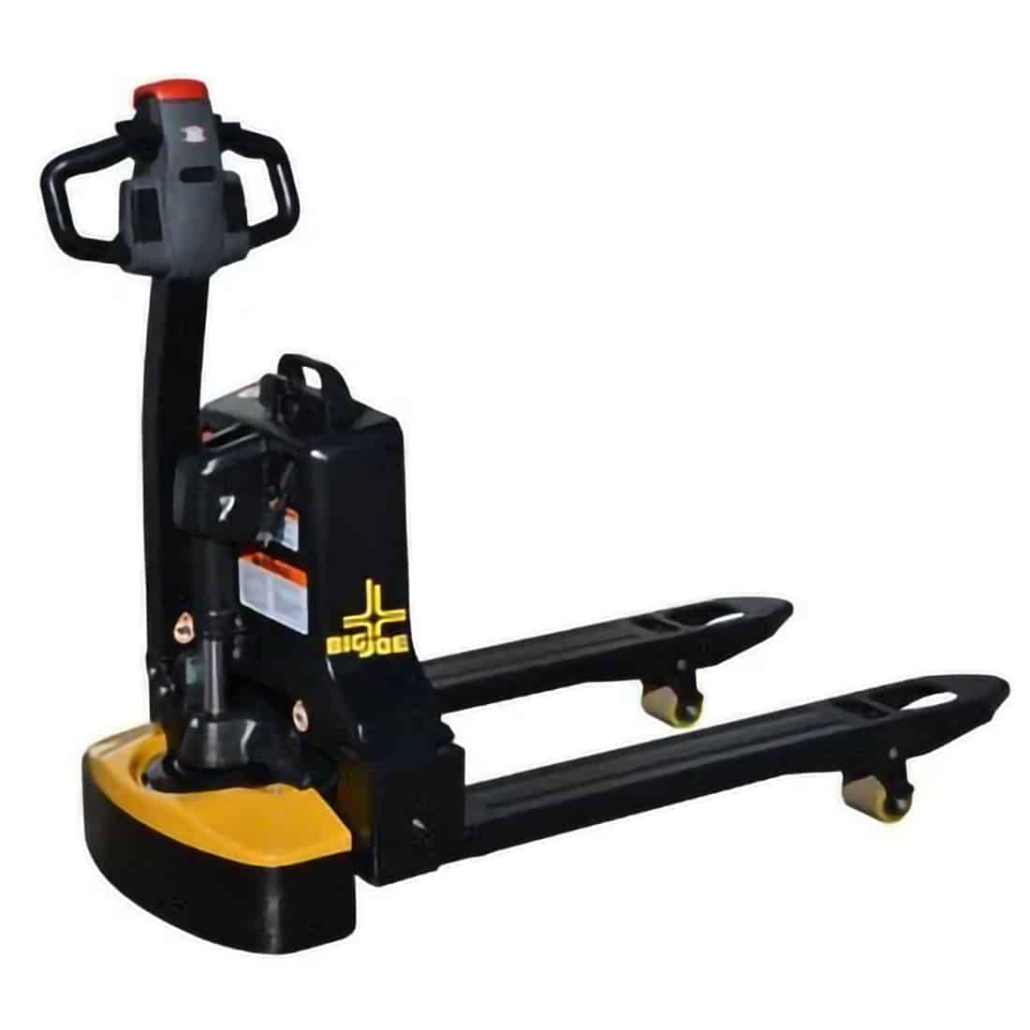

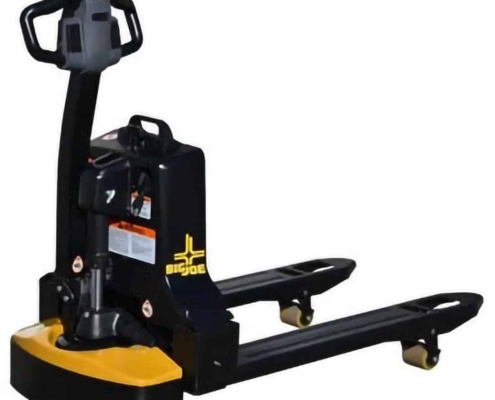

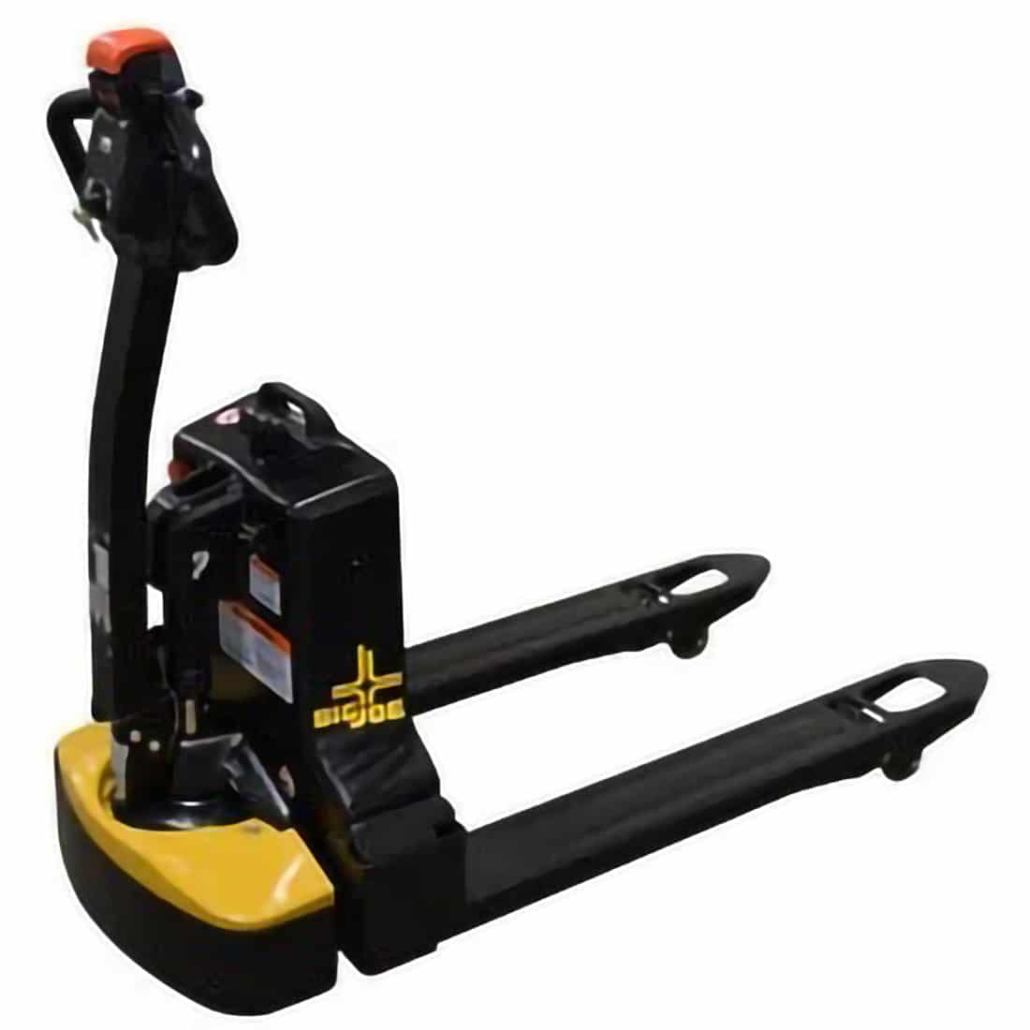

LPT33
3,300 lb. Capacity Integrated Lithium-Ion Pallet Truck
Our 3,300 lb capacity fully electric pallet truck is the most compact and maneuverable product in its class. When coupled with an optional additional easy exchange Li-ion battery, you can achieve infinite duty cycles thanks to their rapid recharge rate and extended run time!
If you’re making deliveries with a lift gate fleet, or moving pallets all day long, the LPT33 is the right choice.
| Vehicle Type | Lithium Pallet Truck |
| Capacity | 3,300lbs. @ 24” load center |
| Power | 24 volt electric with transistor controller |
| Max Lift Height | 7.5” |
| Collapsed Height | 3.25” |
| Fork Dimensions | 27” W x 48” L standard |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | See specification sheet |
| Battery Compartment | Easy exchange lithium ion battery |
| Battery Capacity | 24-volt 20AH rechargeable |
| Charger | 110V plug-in internal |
Product Highlights
- Up to 2 hours of run-time per charge
- Ergonomic handle with reversing switch, horn and dual “butterfly”
- Thumb controls are intuitive and allow for safe, accurate operation
- The unique Easy Exchange battery system functions like common cordless hand tools
- Strong permanent magnet drive motor
- Battery discharge indicator
- Key switch to limit access to approved personnel
