D40

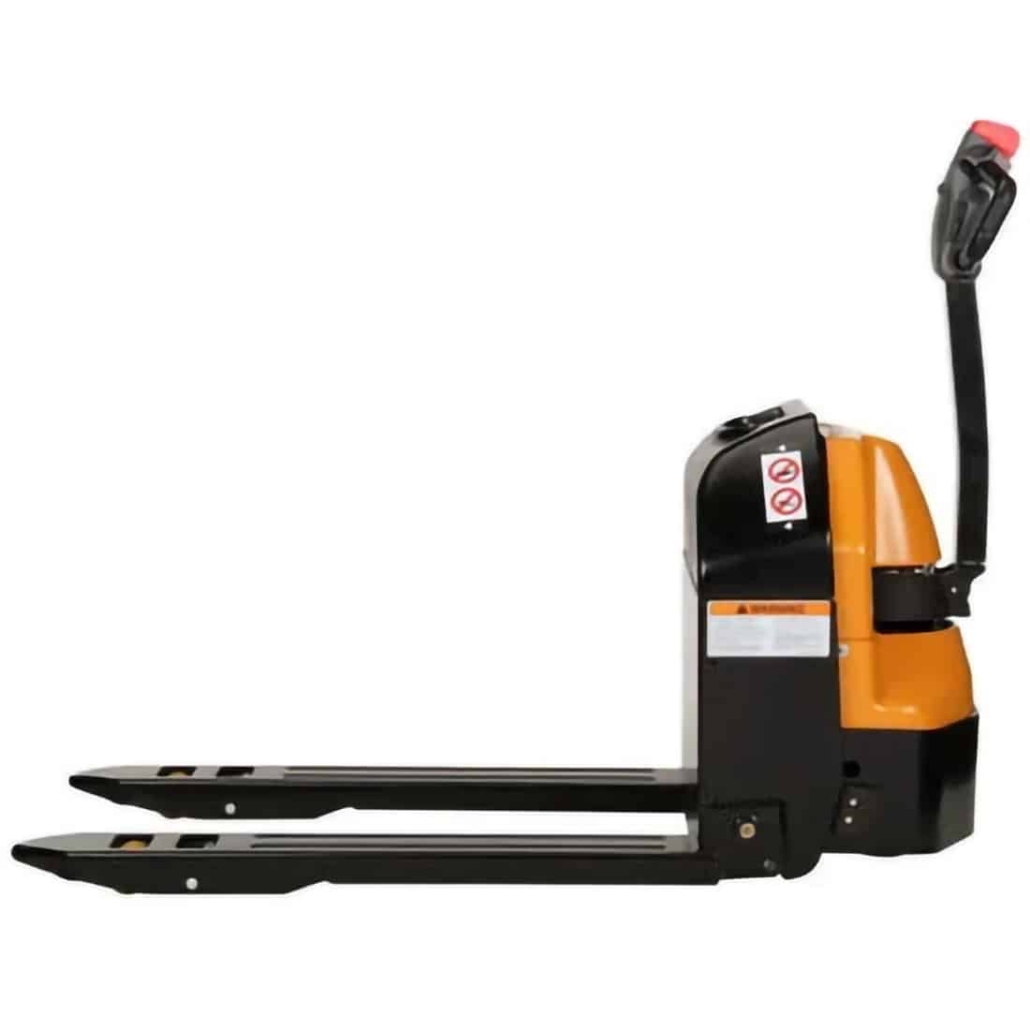

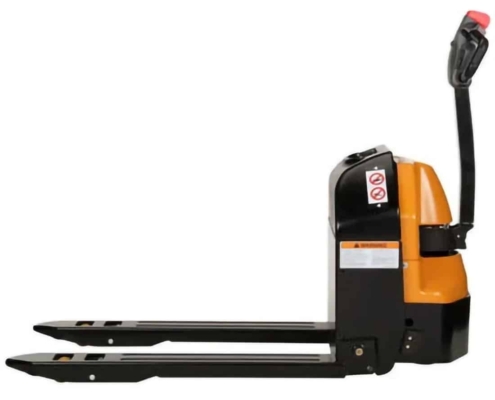

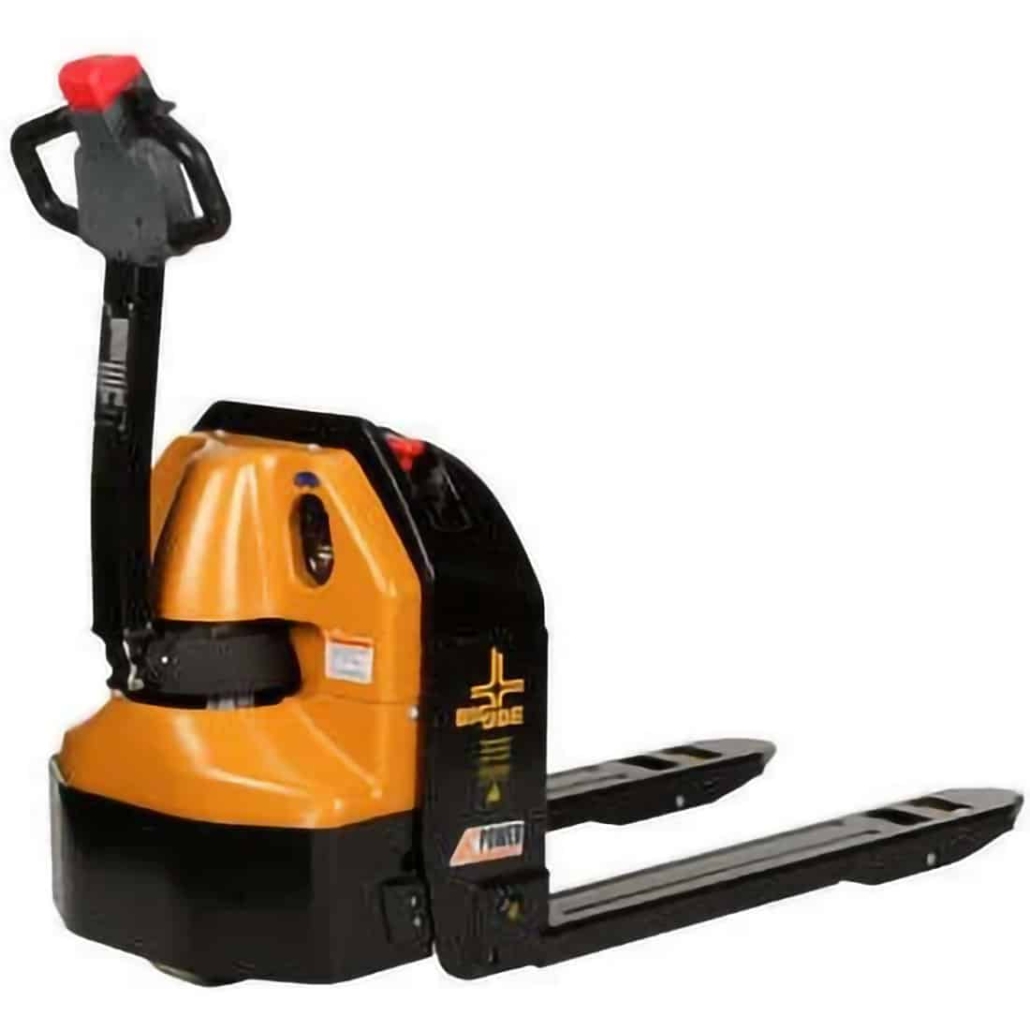

4,000 lb. Capacity Electric Pallet Truck

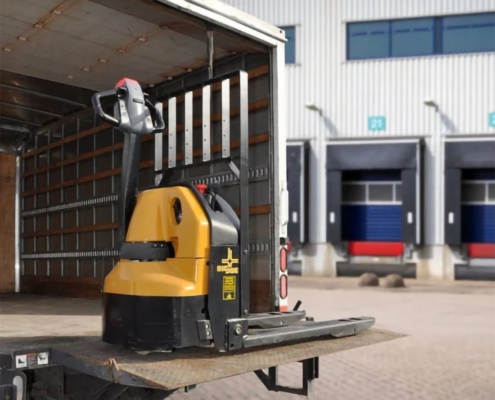

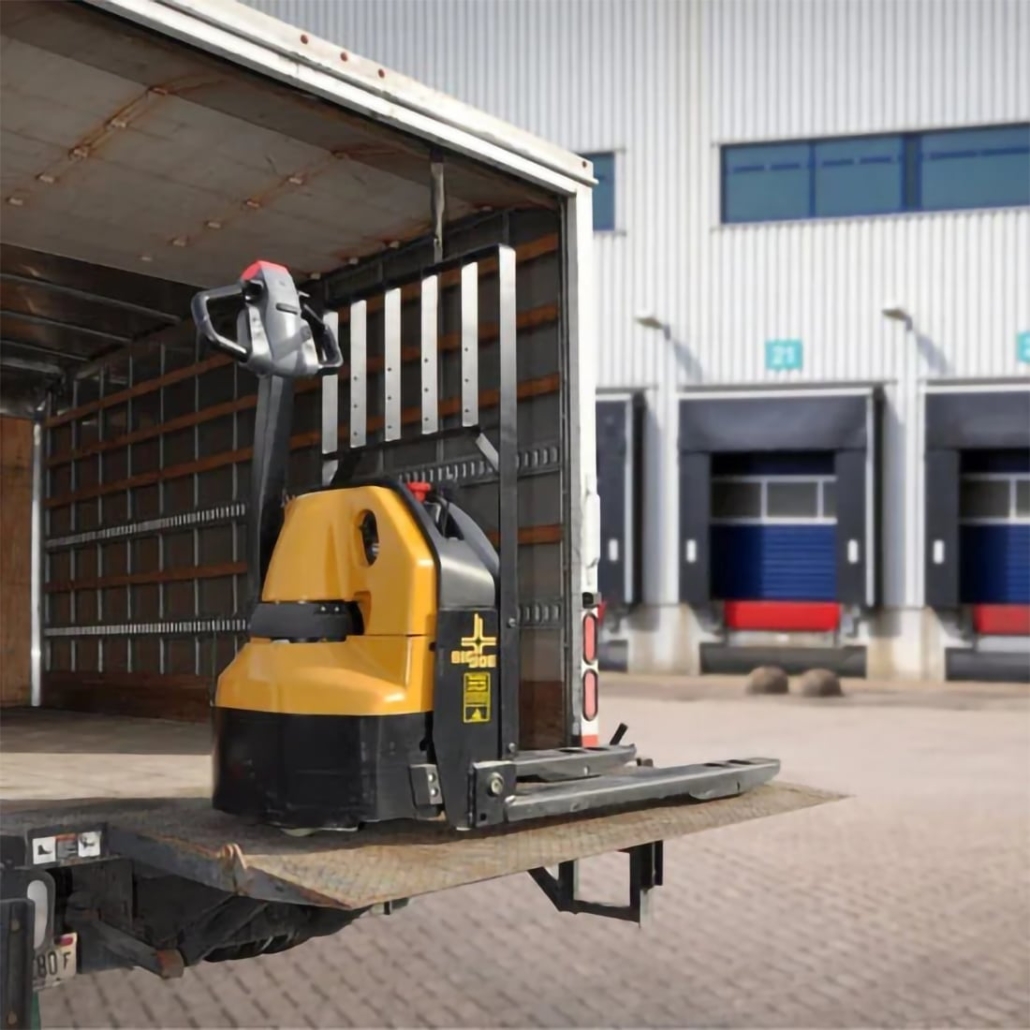

Our 4,000lb capacity electric pallet truck has been developed from the ground up to meet the unique demands of local delivery applications. The D40 is thus very compact in design yet it has the power to perform from warehouse to store, both inside or outdoors.

Vehicle TypeMotorized pallet truck
Capacity4,000lbs. @ 24” load center
Power24 volt AC electric with transistor control
Max Lift Height7.5”
Collapsed Height3.25”
Fork Dimensions27” W x 45” L standard
Vehicle DimensionsSee specification sheet
Turning RadiusSee specification sheet
Travel SpeedSee specification sheet
Battery CompartmentRechargeable internal battery pack
Battery Capacity85AH
ChargerInternal 110V included as standard
Request a Quote Download Brochure

Product Highlights

  • Up to 4 hours of run-time per charge
  • High-efficiency brushless AC drive motor
  • 85AH premium AGM batteries and internal 120v charger
  • Ergonomic handle with tiller based crawl speed
  • Low gross weight
  • Battery discharge indicator
  • Key switch
  • Optional load backrest with tool tray and load restraint belt available
