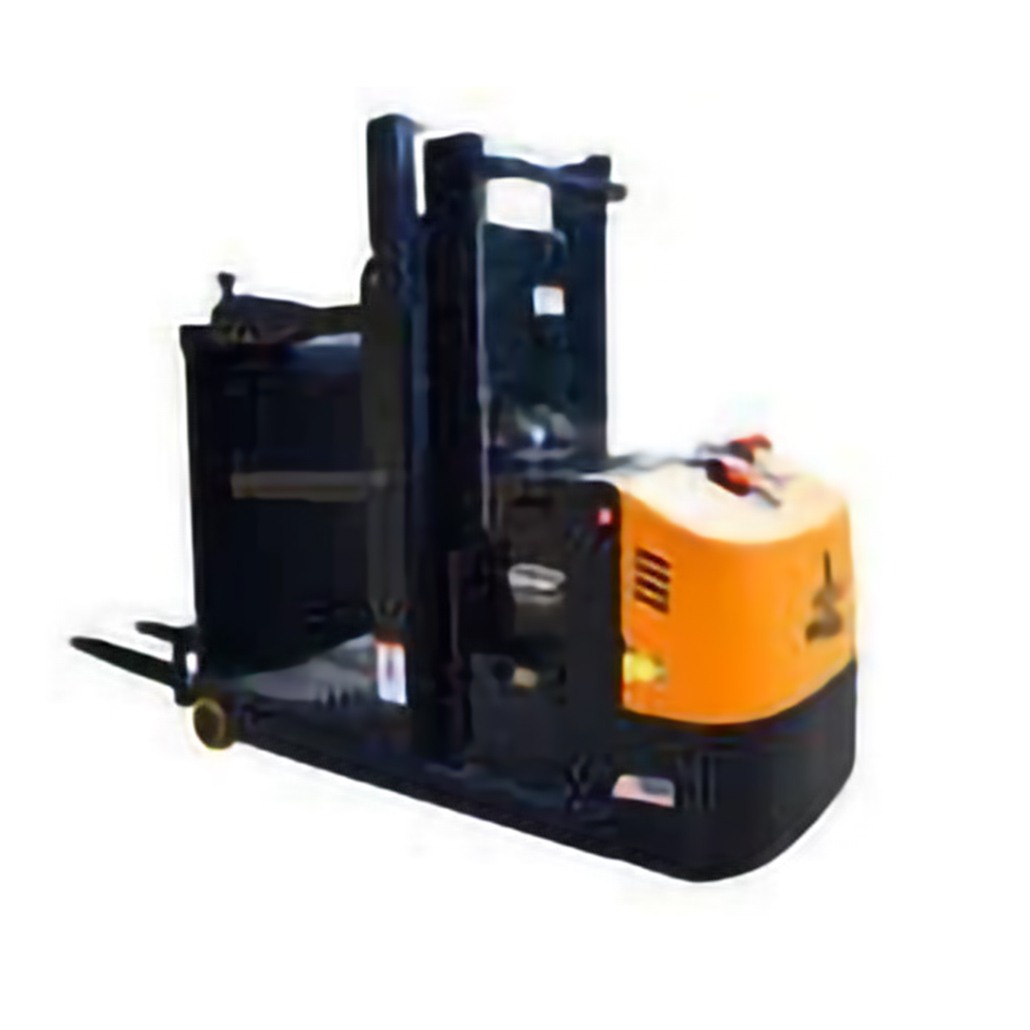

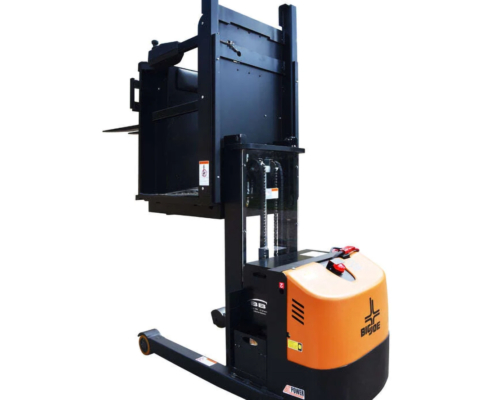

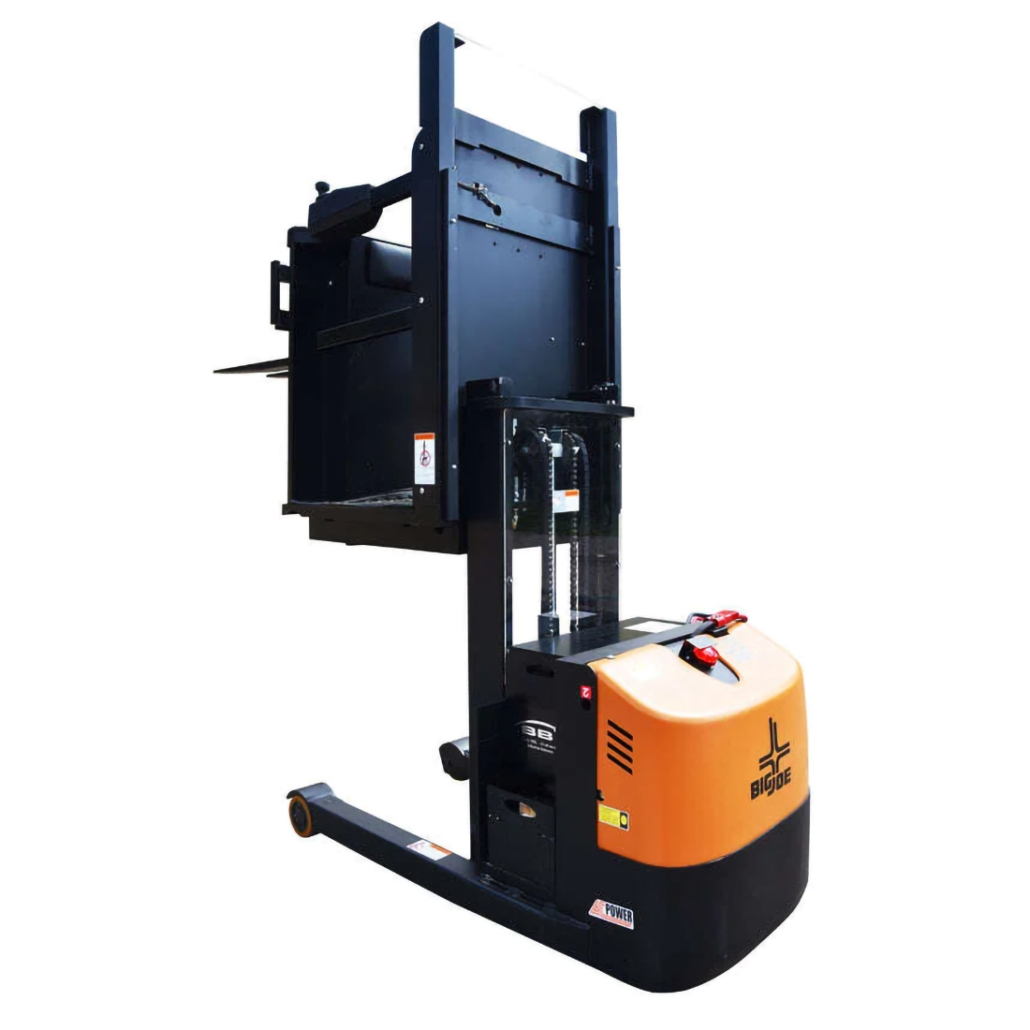

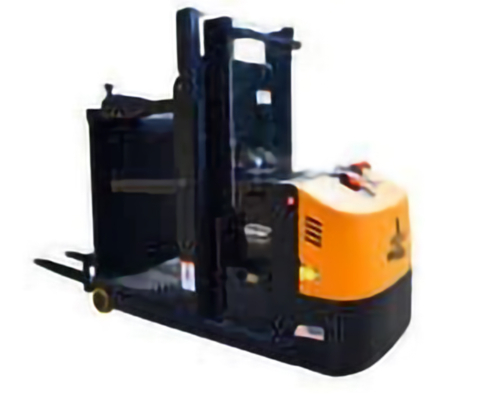

J2 Joey
Low-Level Order Picker
The J2 “JOEY” Low Level Order Picker combines the compact design and exceptional maneuverability of our J1 Task Support Vehicle with attributes of a counterbalanced forklift. The result is a versatile machine that can be used for low level order picking, and staging of pallets.
Utilizing many of the same reliable components as the J1, the J2 low level order picker can elevate an operator 48″ and features a mini mast that can lift up to 2,200 lb loads to a 72″ elevation. The J2 Low Level Order Picker offers travel speeds up to 4.5mph.
Vehicle Type | Low Level Order Pickers |
Maximum Capacity | 2,200@ 24″ LC |
Power | 24 volt AC electric with Zapi transistor control |
Max Operator Height | 48″ |
Max Fork Height | 72″ |
Vehicle Dimensions | See specification sheet |
Battery Capacity | 340AH Industrial or 224AH 5.4kWh AGM battery pack |
Charger | External or Integral 120v smart charger |
Product Highlights
- LCD dash display with selectable travel settings and diagnostics
- Electronic power steering with infinitely variable speed control

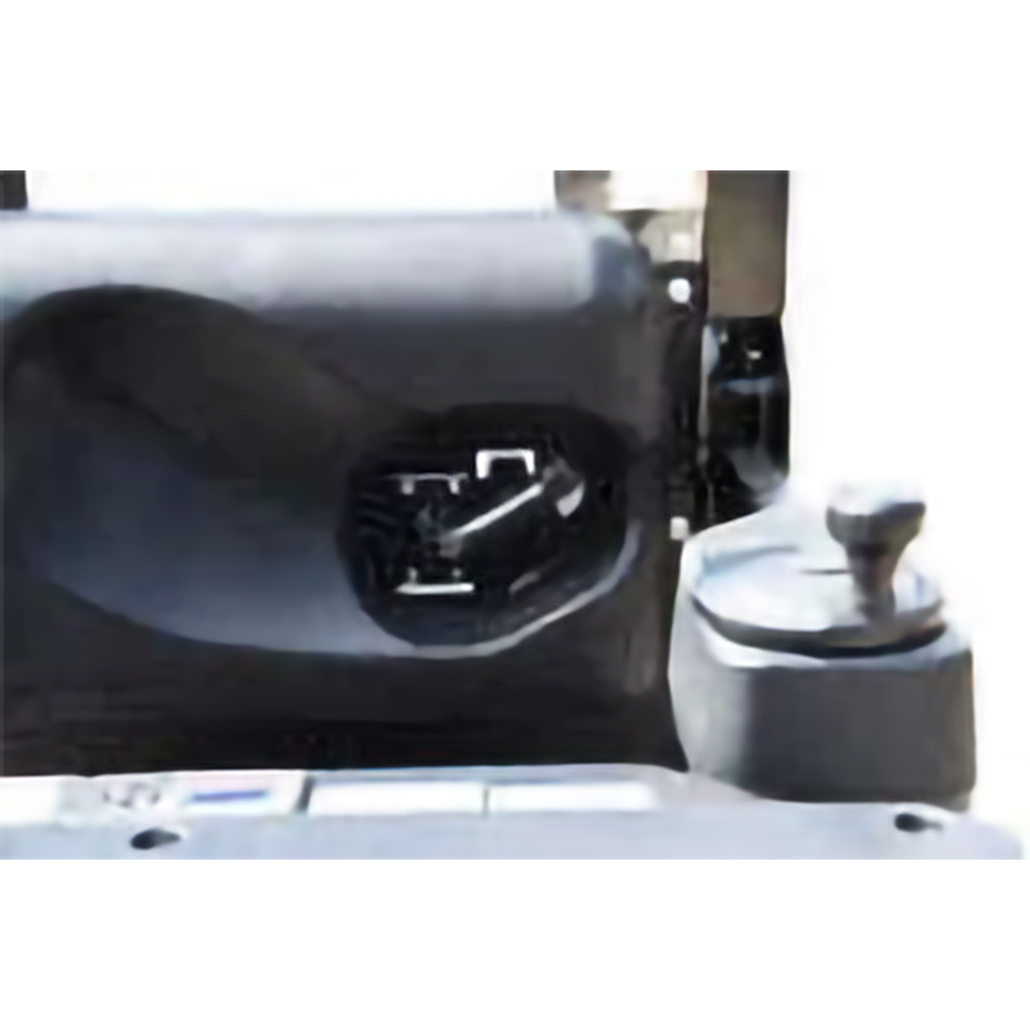

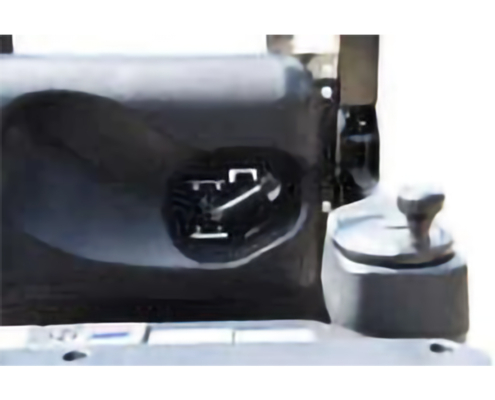

- Finger tip controls integrated into retractable vehicle guardrails
- 180 degree articulating driveline with compact minimum turn radius
- Optional forward controls eliminate the side guardrails
*The J2 Joey Low Level Order Picker has multiple patents pending
