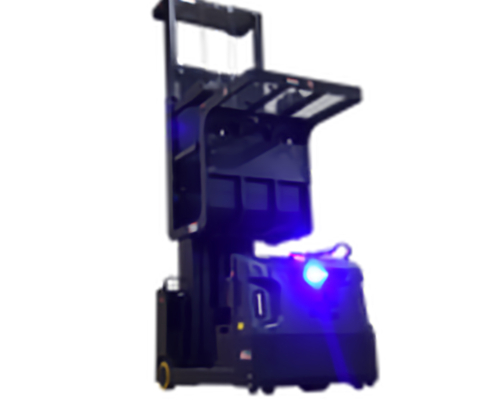

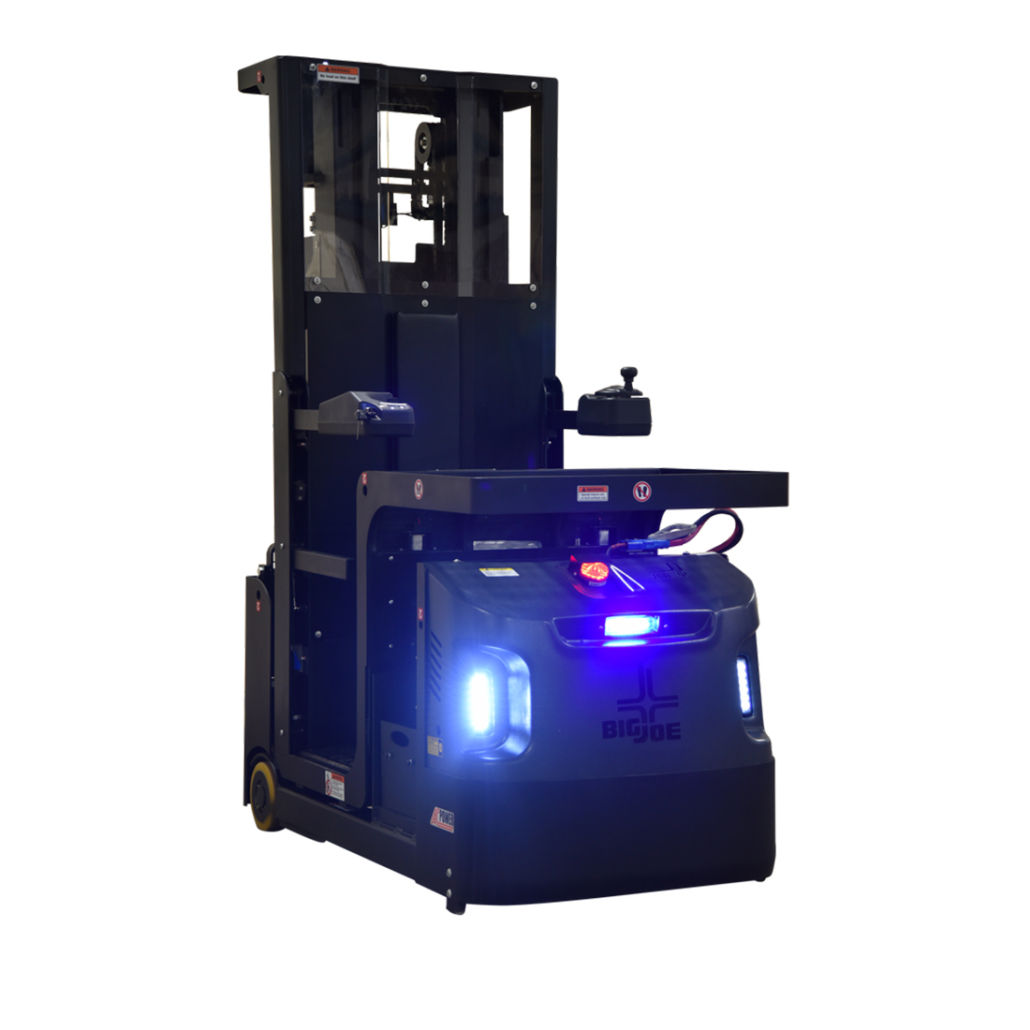

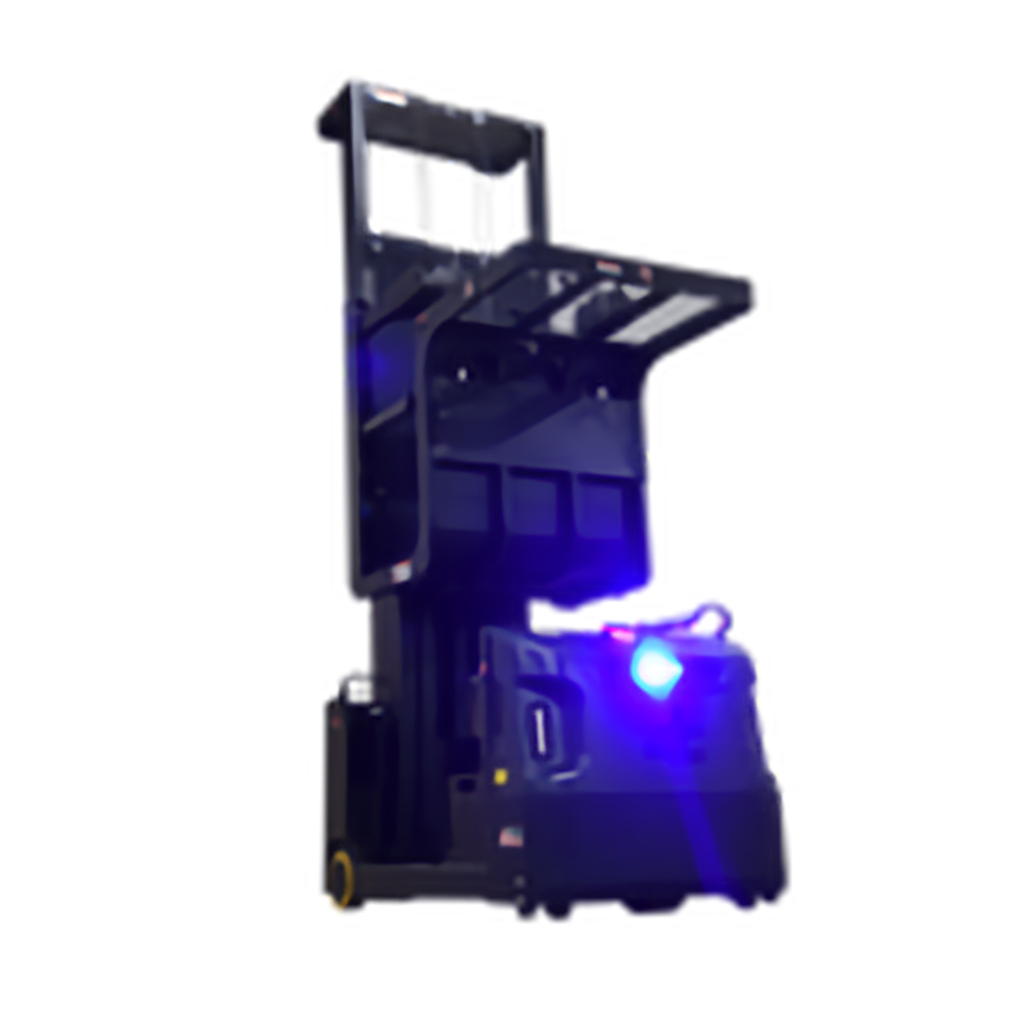

J1HD Super Joey
Task Support Vehicle
The J1HD Super Joey was designed to out-perform ordinary order pickers and utility vehicles in large warehouses and DCs. Based on the best-selling Joey task support vehicle, the J1HD Super Joey is a little larger, rises up a lot higher and travels twice as fast. With 210” of lift and a top speed of 7mph, it is able to reach the 4th level of racking and whisk from storage to shipping in record time. Its optional 48V Li-ion power system delivers high-performance travel, lift speed, enhanced duty cycles and extended run-times.
| Vehicle Type | Task Support Vehicle |
| Maximum Capacity | 1,200lbs. (700 front / 300 operator / 200 rear) |
| Power | 48 volt AC electric with Zapi transistor controller |
| Max Lift Height | Operator platform raises up to 210″ |
| Collapsed Height | 83.5″ / 89″ (162 / 210) |
| Vehicle Dimensions | See specification sheet |
| Battery Capacity | 48V Li-ion |
| Charger | External industrial to match battery |
Product Highlights
- Up to a 1,200lb. total vehicle capacity including a carrying capacity of 700lb. front tray, 300lb. operator, 200lb rear tray*
- LCD dash display with selectable travel settings and diagnostics
- Electronic power steering with infinitely variable speed control
- Finger tip controls integrated into retractable vehicle guardrails
- Premium steel I-beam mast construction and unitized steel frame
- 180 degree articulating driveline with 79″ minimum turn aisle
*Consult factory for capacity derate information
