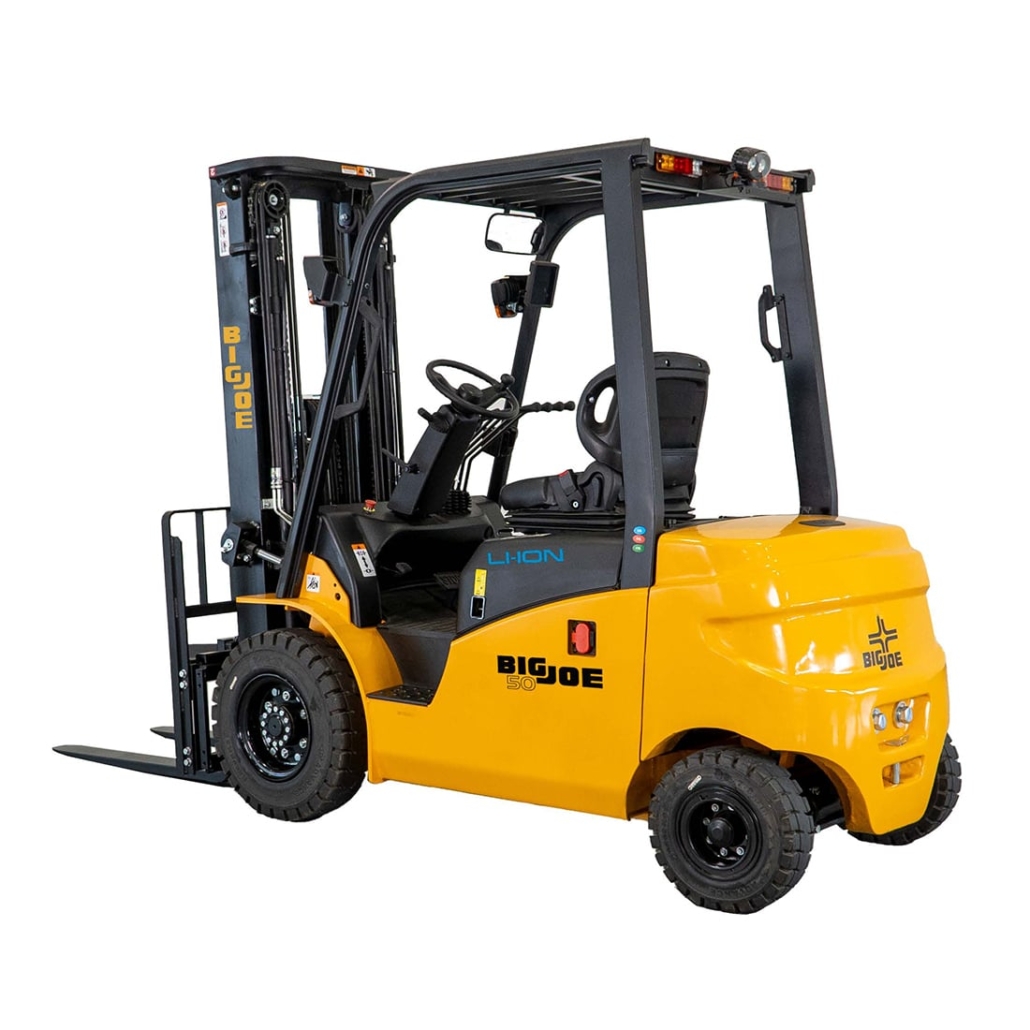

LPE50-70S

Designed for Material Handling in Tough Conditions.

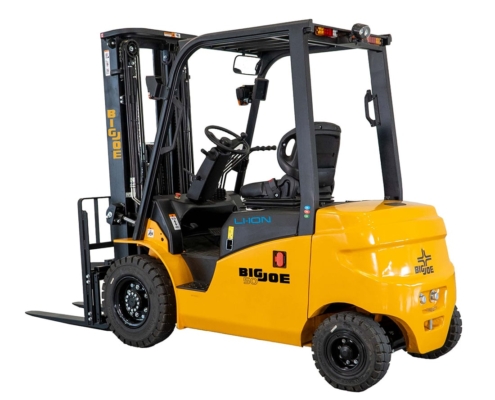

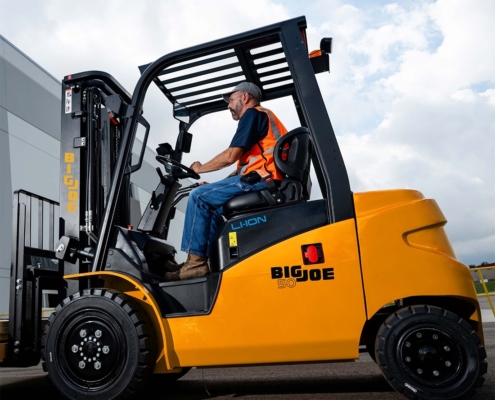

5,000 – 7,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift

SpecificationLPE50SLPE60SLPE70S
Capacity at 24in. Load Center5,000 lbs.6,000 lbs.7,000 lbs.
Battery Size36.8kWh36.8kWh36.8kWh
Overhead Guard Height (in.)85.285.885.8
Overall Width (in.)45.447.647.6
Right Angle Stack (in.)110.3111.3111.3
Max Travel Speed (mph)10.5 10.5 10.5
Max Lift Speed (ft/min.)98.498.498.4

Product Highlights

  • Designed to Meet or Exceed Performance of Internal Combustion Forklifts

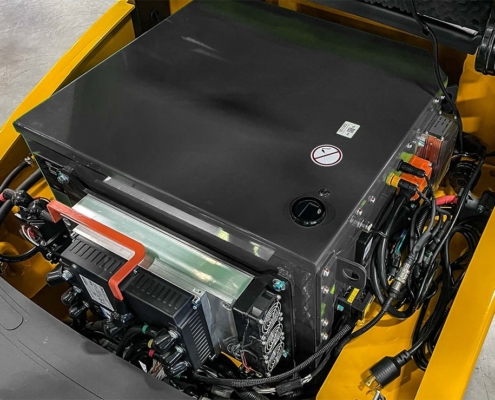

  • UL-Recognized Integrated Lithium-ion Maintenance-free Battery
  • Available with 18.4kWh and 36.8kWh Batteries
  • Onboard 120/240VAC Battery Charger with Power Cords

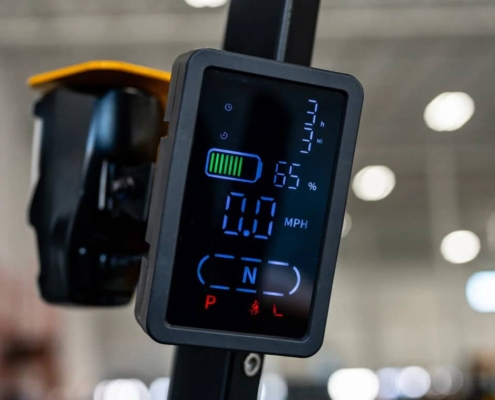

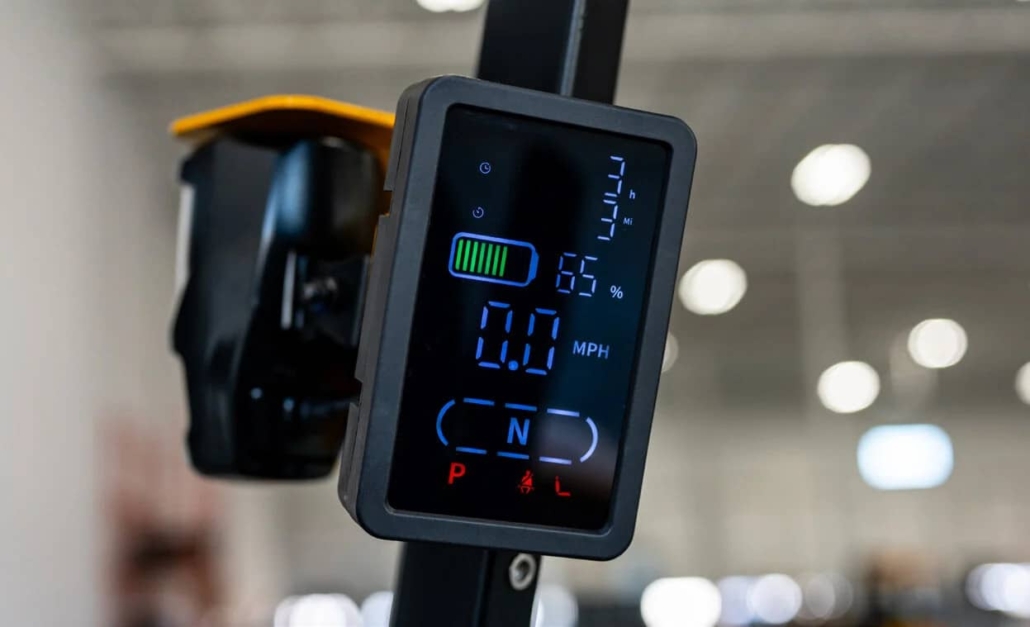

  • Bluetooth-Enabled LCD Display for Diagnostics and Tuning
  • 80V AC Drive and Hydraulic Pump Motors
  • Foot-Activated Parking Brake Lever
  • Low Dash for Excellent Visibility
